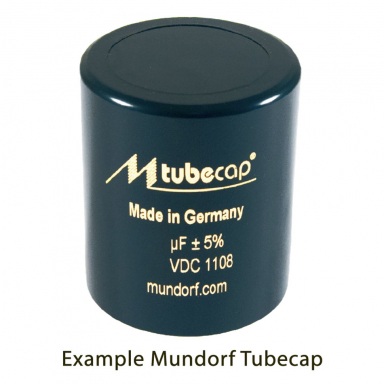

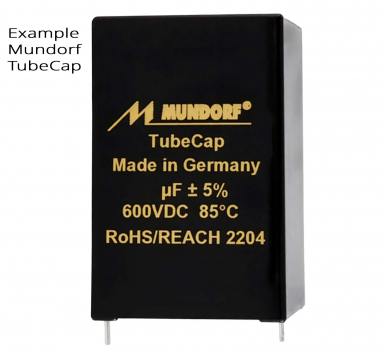

Mundorf TubeCap Film Capacitors



The Mundorf TubeCap is made of polypropylene with special features. It features a particularly thin film for better performance but due to a special coating the self-healing properties are markedly pronounced. This leads to a very high electrical strength in the capacitor with compact dimensions. The TubeCap combines a high degree of dielectric strength and low residual inductance in a very compact form of construction. It has been developed as a high-quality technical alternative to high-voltage electrolytic capacitors and is thus ideally suited to use in tube amplifiers plus of course many other applications. Great replacement for the now-defunct Black Gate capacitors.

6 Items In Total

Number of Products to Show
Sort Products By



Specifications:

  • Lower ESR and lower residual inductivity.
  • No drying out; therefore longer service life.
  • Excellent self-healing properties.
  • More compact form of construction.
  • No series connection necessary for increasing the dielectric strength.
  • Dielectric: Polyprophylene
  • Dielectric strength: 550 - 1000 VDC
  • Tolerance: ± 5%
  • Loss factor: tan ∂ < 0.005 at 1 kHz
  • Useful Life: 100,000 hours @ hot spot 60º
  • Permissible maximum ambient temperature: 85°C / 185°F
