Balance Controls



The DACT CT4 stepped stereo balance controls compliment the CT2 stepped attenuators and are made to the same high precision and quality. The 25 kOhm balance control is designed especially for 10 kOhm attenuators and the 250 kOhm balance control for 100 kOhm (or lower) attenuators.

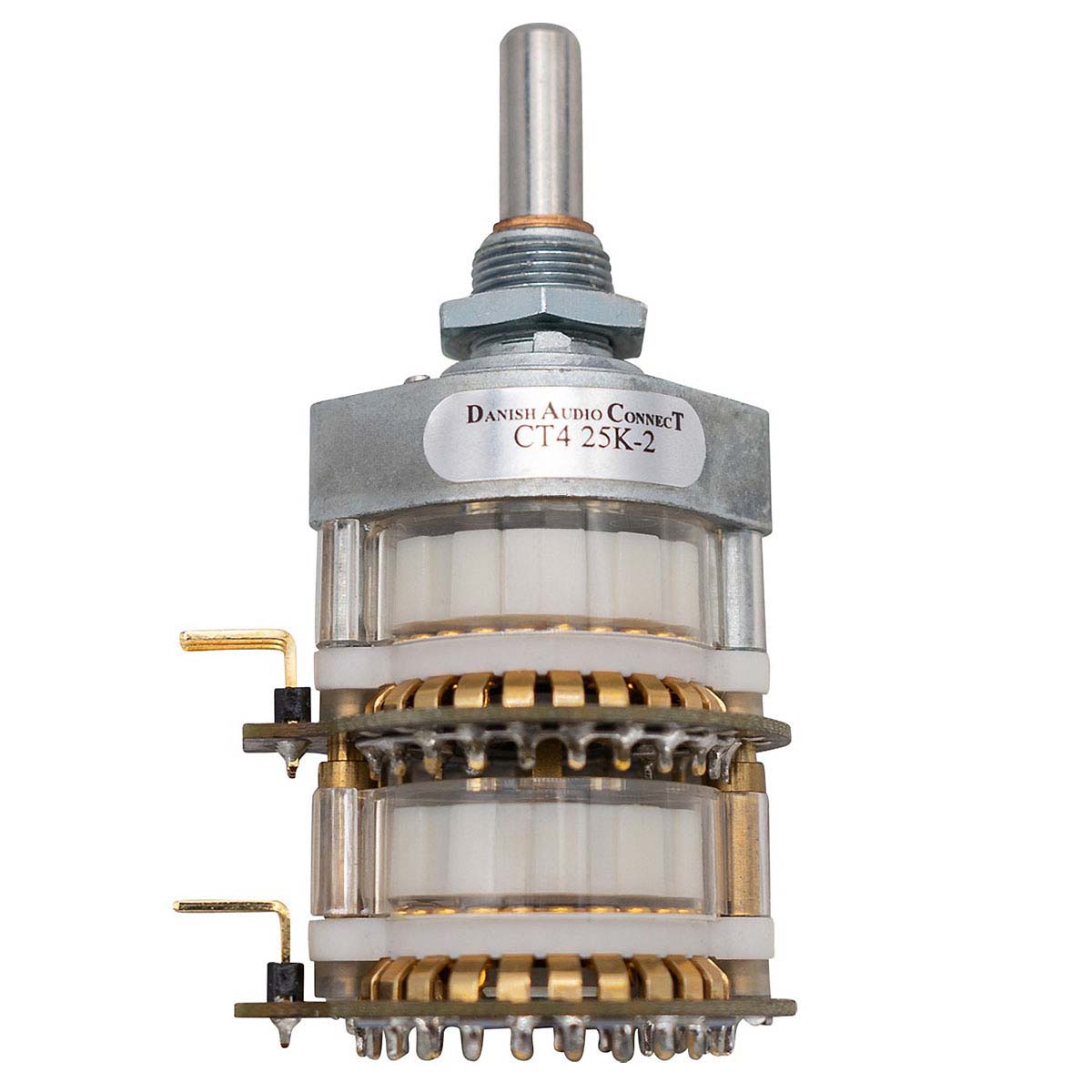

DACT CT4 stepped balance control.
DACT CT4 stepped balance control.

Features

  • High-end sound.
  • Precision balance control with 1/4 dB balance adjustment.
  • Non-inductive SMD resistor network.
  • All contacts and connectors gold plated.

Datasheet

Adobe Acrobat Download DACT CT4 Datasheet (132 KB)
PDF files use Adobe Acrobat® Reader®, which is available here if required.

Specifications

Number of steps
23
Channel balance adjustment range
+/-3 dB
Channel balance adjustment resolution
+/-0.25 dB (+/-0.5dB)
THD
0.0001 %
Attenuation accuracy
+/-0.05 dB
Channel matching
+/-0.05 dB
Mechanical life, min.
>25,000 cycles
Contacts and wiper
Hard-gold plated



Balance Adjustment Curve

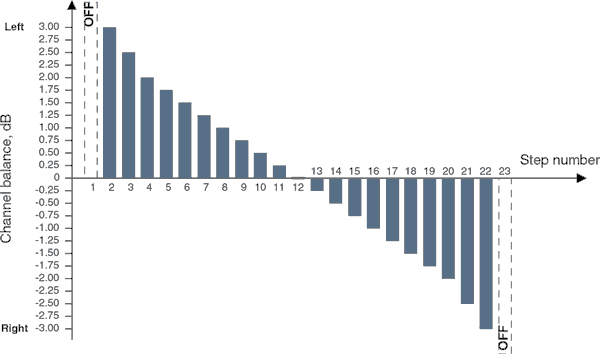

DACT CT4 balance adjustment curve.
DACT CT4 balance adjustment curve.

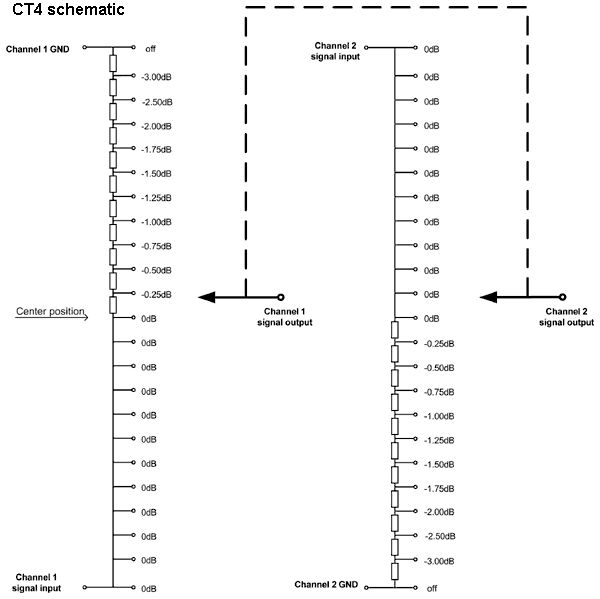

DACT CT4 circuit diagram.
DACT CT4 circuit diagram.
