DL 18-2 SQ - 100V - 8 Ohm

Thumbnail Filmstrip of DL 18-2 SQ - 100V - 8 Ohm Images

    Purchase DL 18-2 SQ - 100V - 8 Ohm

    SKU: V-50154-DL182SQ DL 18-2 SQ - 100V - 8 Ohm

    $99.00 each
    Brand: Visaton
    Quantity in Basket:  None

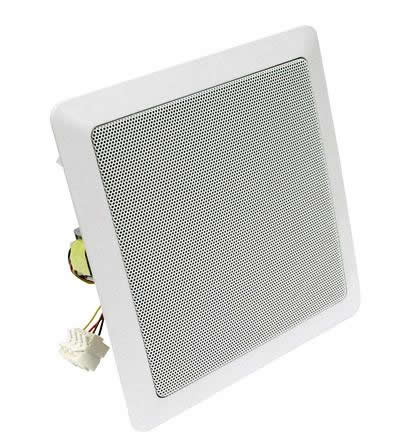

    Visaton Speaker Driver - DL 18/2 SQ - 8 Ohm / 100V 2-Way Ceiling and In-Wall
    Art. No. 50154

    Visaton DL18/2SQ - 8 Ohm / 100V.
    Visaton DL18/2SQ - 8 Ohm / 100V 2-way ceiling and in-wall loudspeaker.



    Characteristics and Sound Properties
    2-way ceiling and in-wall loudspeaker with white plastic frame and metal grille equipped with a 17 cm (6.5") coaxial driver. Suitable for the installation in suspended ceilings and hollow walls. Quick mounting by four screwable mounting clamps in a rectangular cut-out. Push terminals allow quick and easy connection either to a 100 V network or to a normal amplifier (8 Ohm).



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Transformer matching 6; 3; 1.5 W
    Nominal impedance Z 8 Ohm
    Sound pressure level 97 dB (1 W/1 m)
    @ 8500 Hz
    Frequency response 70–20000 Hz
    Mean sound pressure level 90 dB (1 W/1 m)
    Max. sound pressure level 98 dB (6 W/1 m)
    Opening angle (-6 dB) 58°/4000 Hz
    Resonance frequency fs 100 Hz
    Magnetic induction 0,8 T
    Magnetic flux 150 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 187 x 187 mm
    Net weight 0.864 kg
    Length of cable 0.1 m (8 Ohm)
    0.22 m (100 V)
    Protective system IP X3
    Temperature range -25 ... 70 °C
     Temperature Range

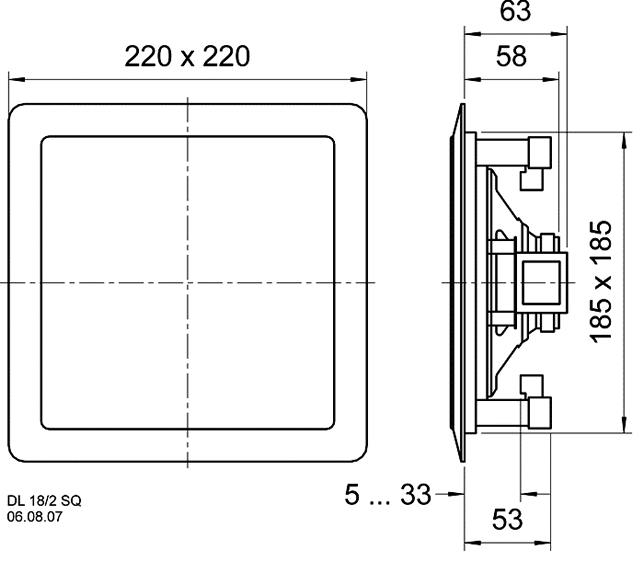

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

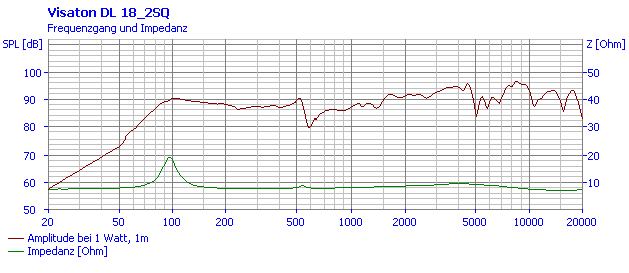

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

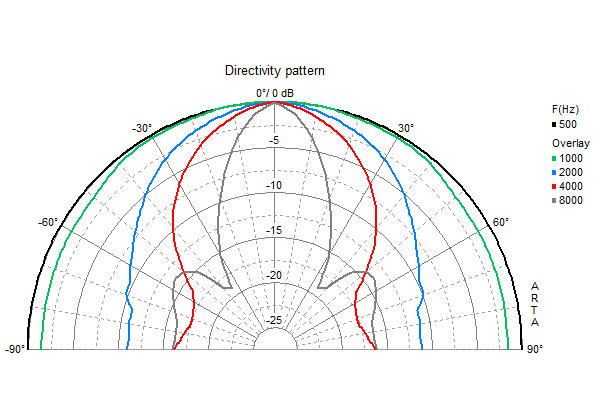

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
