DL 18-1AB - 100V'

Thumbnail Filmstrip of DL 18-1AB - 100V' Images

    Purchase DL 18-1AB - 100V'

    SKU: V-50107-DL181AB DL 18-1AB - 100V'

    $98.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 18/1AB - 100V Ceiling Speaker
    Art. No. 50107

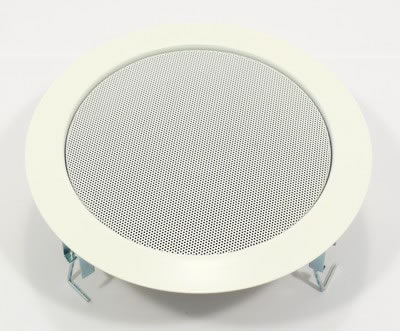

    Visaton DL18/1AB - 100V Ceiling Speaker

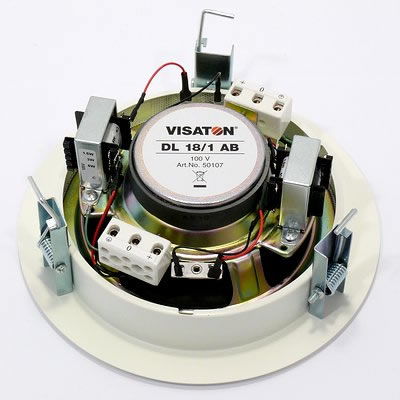

    Visaton DL18/1AB - 100V Ceiling Speaker, rear view.
    Visaton DL18/1AB - 100V Ceiling Speaker



    Characteristics and Sound Properties
    17 cm (6.5") ceiling speaker for PA installations with A/B wiring according to EN 60849. Fitted with a full-range speaker with dual voice coil, two 100 V transformers and two fire-proof ceramic terminals with thermal fuse (fire damage at the speaker does not affect the function of the entire system). Corrosion free grille (RAL 9010), suitable for the installation in suspended ceilings of any material. Quick snap-in mounting due to round ceiling cut-out through which the speaker with transformer and mounting ring can be installed. Connection to the 100-V-network by means of screw terminals, level adjustment with plug-in contacts at the transformers. A quick-mounting bayonet connection provides an easy installation of the grille.

    DL 18/1 AB can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    Typical applications:
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
    - For PA installations with A/B wiring according to EN 60849

    Attributes:
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible
    - Ceramic terminals and thermal fuses



    Technical Specifications

    Transformer matching 2x 6 W; 2x 3 W; 2x 1.5 W
    Frequency response 90–18000 Hz
    Mean sound pressure level
    96 dB (2x 1 W/1 m)
    Max. sound pressure level 104 dB (2x 6 W/1 m)
    Opening angle (-6 dB) 57°/4000 Hz
    Resonance frequency fs 130 Hz
    Voice coil diameter 20 mm
    Cutout diameter 200 mm
    Net weight 1.55 kg
    Protective system IP X3
    Temperature range -40 ... 110 °C
    Colour RAL 9010

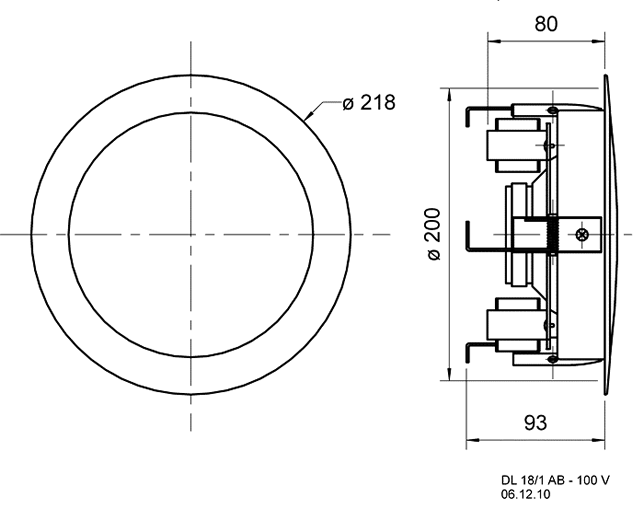

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

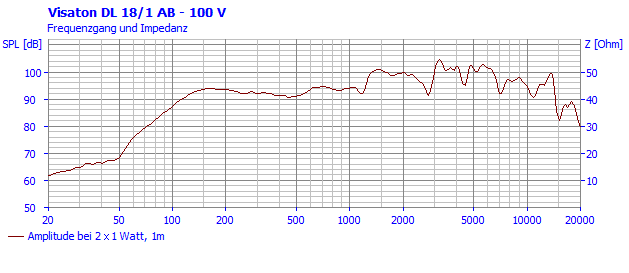

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

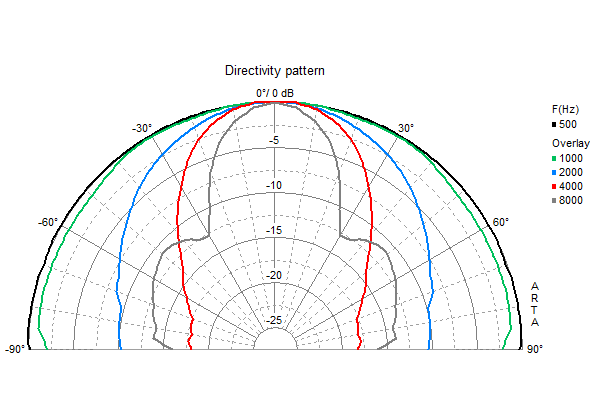

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
