DL 18-1 B - 100V'

Thumbnail Filmstrip of DL 18-1 B - 100V' Images

    Purchase DL 18-1 B - 100V'

    SKU: V-50145-DL181B DL 18-1 B - 100V'

    $29.00 each
    Brand: Visaton
    Quantity in Basket:  None



    4 available.




    Visaton Speaker Driver - DL 18/1 B - 17cm 100V Ceiling Speaker
    Art. No. 50145

    Visaton DL18/1B 100 Volt Ceiling Speaker.
    Visaton DL18/1B 100 Volt Ceiling Speaker, rear view.
    Visaton DL18/1B - 100V Ceiling Speaker



    Characteristics and Sound Properties
    17 cm (6.5") ceiling speaker with aesthetically appealing grille, suitable for the installation in suspended ceilings of any material. Easy mounting due to solid spring arms into round ceiling cut-out through which the one-piece speaker can be installed safe against ball throwing. A push terminal block allows quick and easy connection to the 100V network.



    Technical Specifications

    Transformer matching 6 / 3 / 1.5 W
    Sound pressure level 96 dB (1 W/1 m)
    @ 4950 Hz
    Sensitivity 94 dB (1 W/1 m)
    Frequency response 80–20000 Hz
    Mean sound pressure level 91 dB (1 W/1 m)
    Max sound pressure level 100 dB (6 W/1 m)
    Cutout diameter 170 mm
    Net weight 0.9 kg
    Temperature range -40 ... 110 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

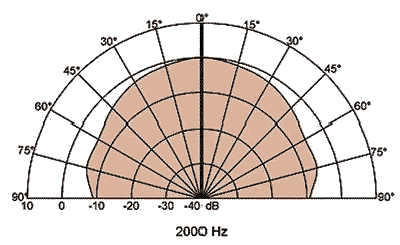

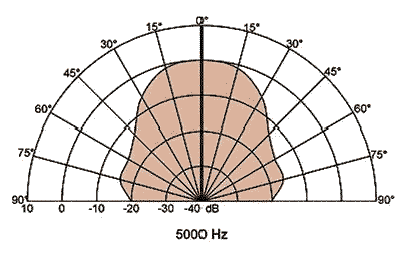

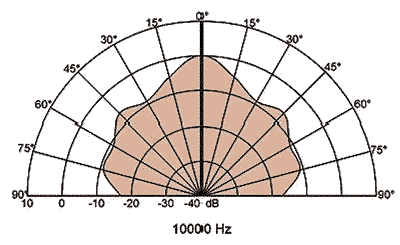

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    dl181b

    dl181b

    Loudspeaker Directivity Pattern (on and off axis response)
