DL 18-2 - 100V

Thumbnail Filmstrip of DL 18-2 - 100V Images

    Purchase DL 18-2 - 100V

    SKU: V-50104-DL182 DL 18-2 - 100V

    $156.00 each
    Brand: Visaton
    Quantity in Basket:  None

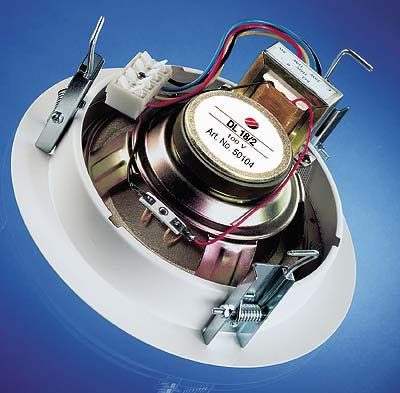

    Visaton Speaker Driver - DL 18/2 - 100V HiFi Ceiling Speaker
    Art. No. 50104

    Visaton DL18/2.

    Visaton Visaton DL18/2 - 100V Hifi Ceiling Speaker



    Characteristics and Sound Properties
    17 cm (6.5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with transformer and mounting ring can be installed. A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment (transformer version). A quick-mounting bayonet connection provides an easy installation of the grille.

    DL 18/2 can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    Typical applications
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.

    Attributes
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible
    - Ffunctionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Uup to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)



    Technical Specifications

    Transformer matching 20; 10; 5 W
    Sound pressure level 94 dB (1 W/1 m)
    @ 4954 Hz
    Frequency response 50–20000 Hz
    Mean sound pressure level
    90 dB (1 W/1 m)
    Max sound pressure level 103 dB (20 W/1 m)
    Opening angle (-6 dB) 64°/4000 Hz
    Resonance frequency fs 90 Hz
    Magnetic induction 0.95 T
    Magnetic flux 310 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 25 mm
    Height of winding 6 mm
    Cutout diameter 200 mm
    Net weight 1.5 kg
    Protective system IP X3
    Temperature range -40... 80 °C
    Colour RAL 9010

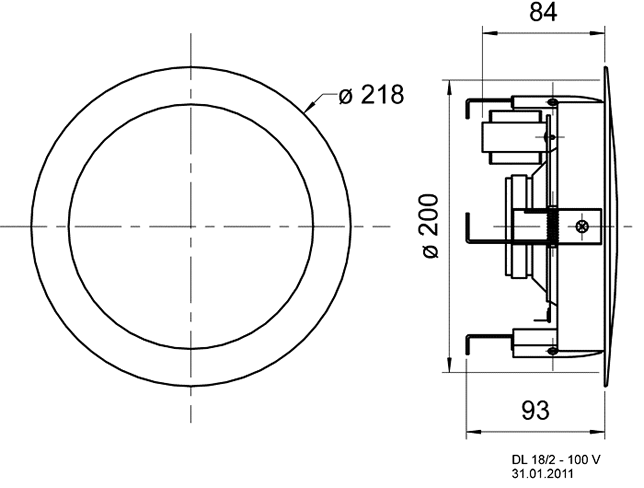

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

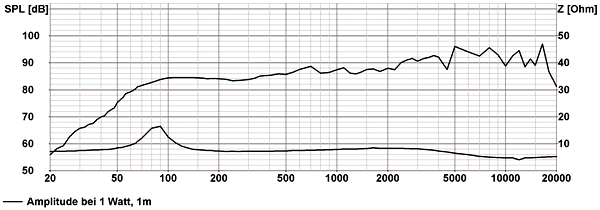

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

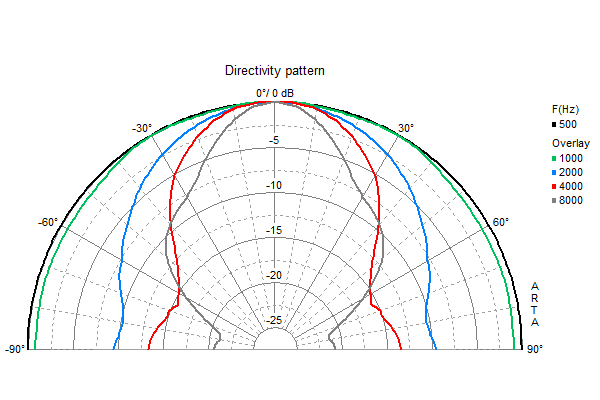

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
