    Purchase DL 18-1 F - 100V'

    SKU: V-50109-DL181F DL 18-1 F - 100V'

    $55.00 each
    Brand: Visaton
    Quantity in Basket:  None



    4 available.




    Visaton Speaker Driver - DL 18/1 F - 100V Ceiling Speaker
    Art. No. 50109

    DL18/1F 100V Ceiling Speaker with corrosion-resistant grille.
    DL18/1F 100V Ceiling Speaker with corrosion-resistant grille, rear view.

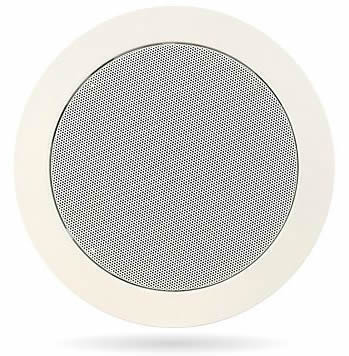

    Visaton DL18/1F 100 V Ceiling Speaker with corrosion-resistant grille.



    Characteristics and Sound Properties
    17 cm (6.5") ceiling speaker with a corrosion-resistant grille (RAL 9010), suitable for installation in suspended ceilings of any kind. Quick snap-in mounting due to round ceiling cut-out through which the speaker, transformer and mounting ring can be installed. The attractive grille is quickly and conveniently fixed with a bayonet locking mechanism. Any volume adjustments necessary are carried out by a simple spring clip mechanism.

    The DL 18/1 F is equipped with an integrated fail-safe mechanism which ensures that a burnout in one loudspeaker does not lead to a failure in the entire system of connected speakers.

    The loudspeaker is equipped with ceramic terminals, a thermal fuse and a heat-resistant high-temperature wiring so that it conforms to both Dutch (NEN 2575) and British (BS 5839) regulations for alarm systems. Ceramic terminals for rapid connection to the 100 V mains. A second terminal enables the wiring to be looped through to the next speaker. The cable clamps supplied ensure the incoming cables of 8, 12 or 16 mm diameter are firmly held. These loudspeakers are also fitted with a series capacitor for monitoring the circuit.

    Typical applications:-
    - Ceiling-mounted speakers in 100 V sound reinforcement systems in public areas, schools, hotels etc.



    Technical Specifications

    Transformer matching 6 / 3 / 1.5 Watt
    Sound pressure level 101 dB (1W/1m)
    @ 3260 Hz
    Sensitivity 96 dB (1 W/1 m)
    Frequency response 70 - 20000 Hz
    Mean sound pressure level 93 dB (1 W/1 m)
    Max. sound pressure level 101 dB (6 W/1 m)
    Resonance frequency fs 100 Hz
    Voice coil diameter 20 mm
    Cutout diameter 200 mm
    Net weight 1.15 kg
    Temperature range 110°C





    Driver Dimensions

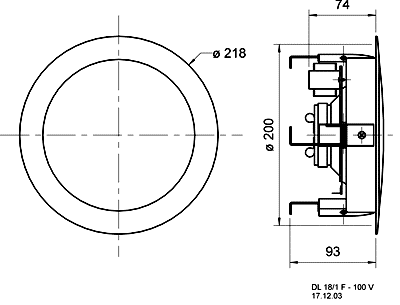

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Frequency response Dl 181 F

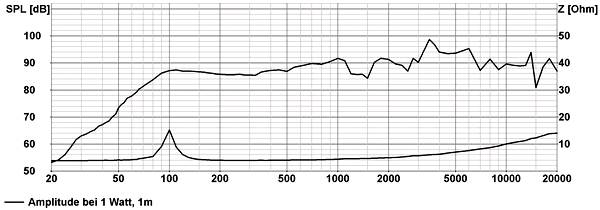

    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

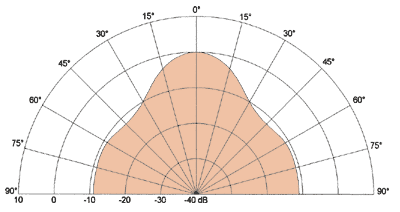

    Radiation pattern 2000 Hz



    Radiation Pattern DL18f

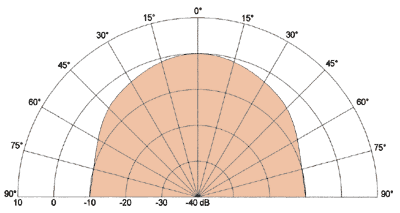

    Radiation pattern 5000 Hz



    Radiation Pattern dl18f

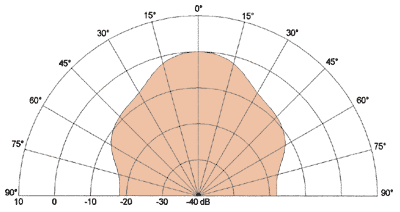

    Radiation Pattern 10000 Hz
