DL 18-2 T - 8 Ohm

Thumbnail Filmstrip of DL 18-2 T - 8 Ohm Images

    Purchase DL 18-2 T - 8 Ohm

    SKU: V-50100-DL182T DL 18-2 T - 8 Ohm

    $120.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 18-2 T - 8 Ohm Hifi Ceiling Speaker
    Art. No. 50100

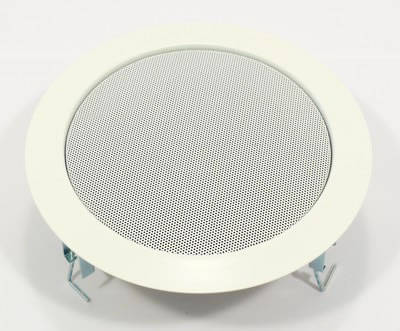

    Visaton DL18-2T - 8 Ohm ceiling speaker.

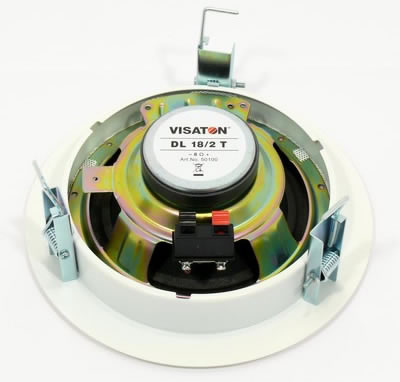

    Visaton DL18-2T - 8 Ohm ceiling speaker, rear view.
    Visaton DL18/2T - 8 Ohm HiFi ceiling speaker



    Characteristics and Sound Properties
    17 cm (6.5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed. A push-terminal block allows a quick and easy connection. A quick-mounting bayonet connection provides an easy installation of the grille.

    DL 18/2 T can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    Typical applications:-
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc

    Attributes:-
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)



    Technical Specifications

    Rated power 50 W
    Maximum power 70 W
    Nominal impedance Z 8 Ohm
    Frequency response 50-20000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 64°/4000 Hz
    Resonance frequency fs 90 Hz
    Magnetic induction 0.95 T
    Magnetic flux 310 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Cutout diameter 200 mm
    Net weight 1.15 kg
    DC resistance Rdc 6.9 Ohm
    Mechanical Q factor Qms 2.68
    Electrical Q factor Qes 1.68
    Total Q factor Qts 1.03
    Equivalent volume Vas 15 litres
    Effective piston area Sd 129 cm2
    Dynamically moved mass Mms 7.9 grams
    Inductance of the voice coil L 0.9 mH
    Protective System IPX3
    Temperature range -40 ... 80 °C

     Temperature Range





    Driver Dimensions

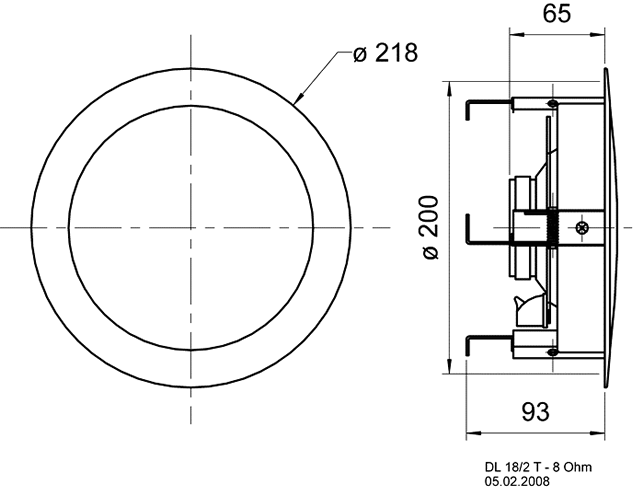

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

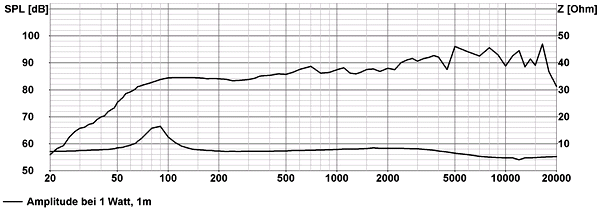

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

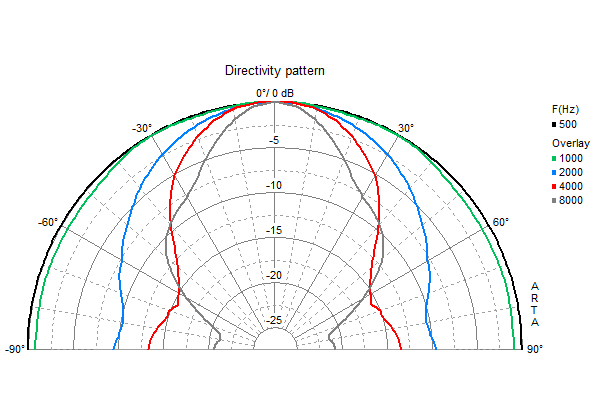

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
