EX 60 R - 8 Ohm Exciter

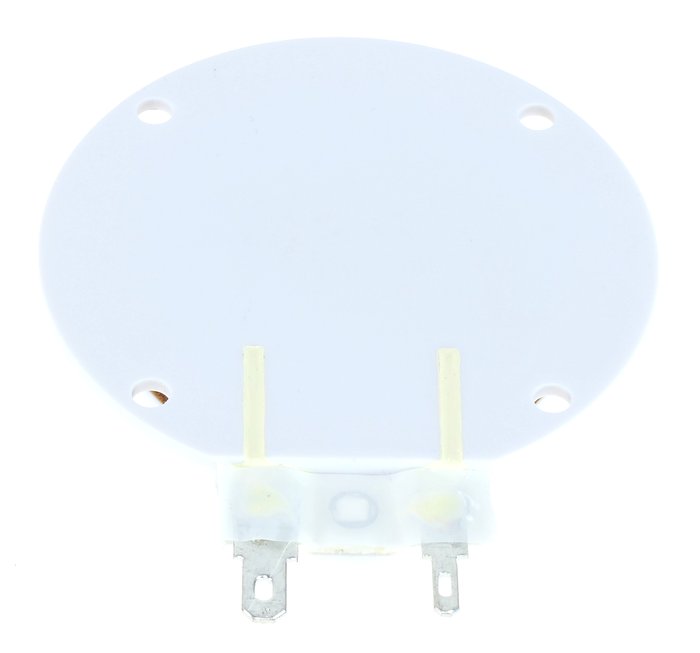

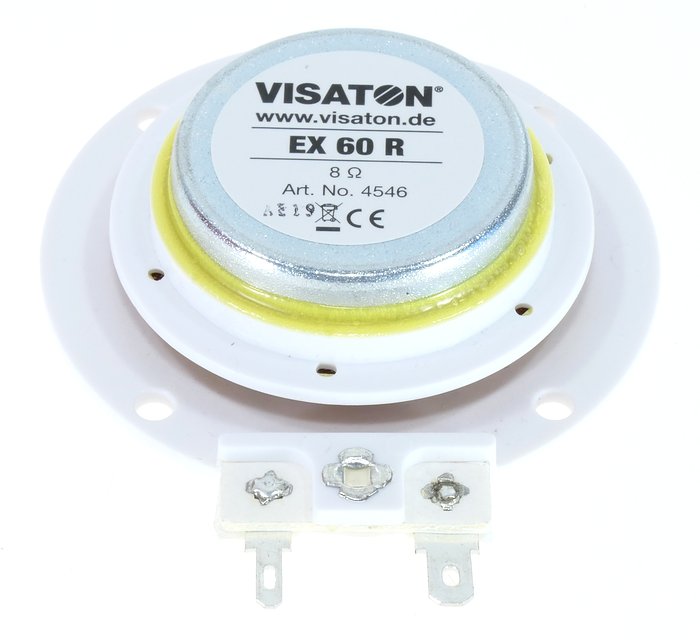

Thumbnail Filmstrip of EX 60 R - 8 Ohm Exciter Images

    Purchase EX 60 R - 8 Ohm Exciter

    SKU: V-4546-EX60R EX 60 R - 8 Ohm Exciter

    $70.00 each - Special Order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - EX 60 R - 8 Ohm Electrodynamic Exciter
    Art. No. 4546


    Visaton

    EX 60 R - 8 Ohm Electrodynamic Exciter



    Characteristics and Sound Properties

    Electrodynamic exciter for excitation of plates to bending wave vibrations. The exciter can be attached to the surface of the plate to be stimulated by gluing or screwing.

    Further information on exciters can be found here: Basics of Exciter Technology PDF Maximum long-term input power according to DIN EN 60268-5

    Applications

    • Signal output in applications of all kinds where no visible loudspeakers can be installed for design reasons or to protect against environmental influences or vandalism.
    Properties

    • meets the requirements of EN 60068-2-14 (temperature change, cyclic: -40 °C/+80 °C)
    • meets the requirements of EN 61373 (oscillations, shocks: category 1/class B) €44.27*



    Technical Specifications

    Nominal load Capacity 25 W
    Nominal impedance Z 8 Ohms
    Voice Coil Diameter 32.5 mm
    Net Weight
    0.125 kg
    Connections 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
    Temperature Range -25... 70°

    Temperature Range





    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph
