EX 60 S - 4 Ohm Exciter

Thumbnail Filmstrip of EX 60 S - 4 Ohm Exciter Images

    Purchase EX 60 S - 4 Ohm Exciter

    SKU: V-4536-EX60S EX 60 S - 4 Ohm Exciter

    $95.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - EX 60 S - 4 Ohm Electro Dynamic Exciter
    Art. No. 4536

    Visaton EX60S - 4 Ohm.

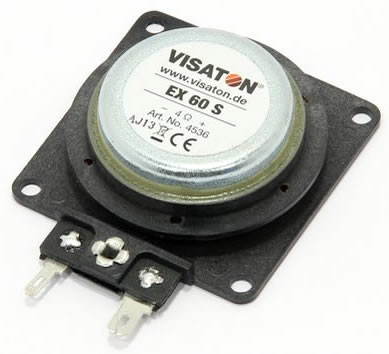

    Visaton EX60S - 4 Ohm Electro Dynamic Exciter
    Visaton EX60S Electro Dynamic Exciter - 4 Ohm



    Characteristics and Sound Properties
    Electro dynamical panel exciter / vibrator for stimulating bending waves on plates by vibrating. The unit can be attached to the surface of the plate by gluing or screwing. Please find further information on exciters here:
    Basic principles of exciter-technology (PDF) Typical applications:-
    - Signal output in every application where normal speakers can not be installed for optical reasons or for protection against environment conditions or vandalism.

    Attributes:
    - Complies with standard EN 60068-2-14 (change of temperature, cyclic: -40 °C / +80 °C)
    - Complies with standard EN 61373 (vibration, shock: category 1/class B)



    Technical Specifications

    Maximum power 25 W *)
    Nominal impedance Z 4 Ohm
    Voice coil diameter 32.5 mm
    Net weight 0.12 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
    Temperature range -25 ... 70 °C
    *) Maximum long term power according to DIN EN 60268-5

    Temperature Range

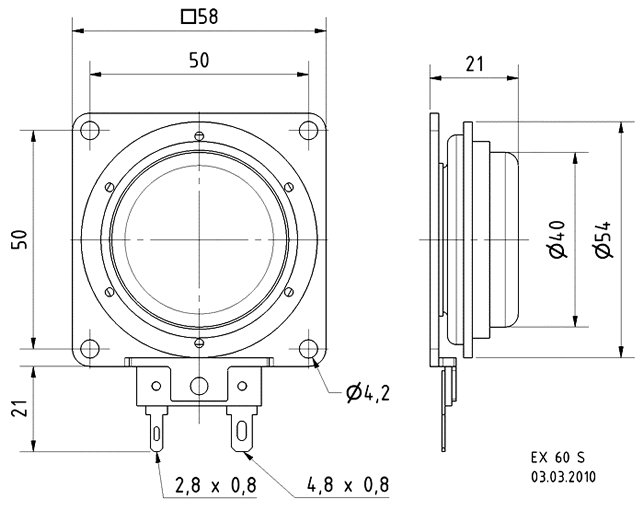

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Remove in MIVA XXXXX
    Loudspeaker Frequency and Impedance Response Graph
