BS 130 - 4 Ohm Exciter'

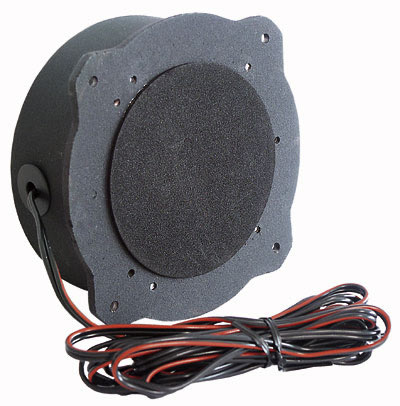

Thumbnail Filmstrip of BS 130 - 4 Ohm Exciter' Images

    Purchase BS 130 - 4 Ohm Exciter'

    SKU: V-4512-BS130 BS 130 - 4 Ohm Exciter'

    $94.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - BS130 - 4 Ohm Exciter / Shaker / Vibration Speaker
    Art. No. 4512

    Visaton BS130 - 4 Ohm.
    Visaton BS130 - 4 Ohm



    Characteristics and Sound Properties
    Structure-borne sound converter for bass frequencies. The units are attached to a surface which is able to resonate, which causes it to oscillate (e.g. a panel of a car body, the base construction of a settee etc.). No enclosed cabinet is required. Using the BS 130 - 4 Ohm, this enables the lowest bass frequencies, such as those used for effects in films, to be reproduced in such a way that they are felt through the body rather than heard. Please find further information on exciters here: Basic principles of exciter-technology (PDF; 234 KB)



    Technical Specifications

    Rated power 50 W
    Maximum power 100 W
    Nominal impedance Z 4 Ohm
    Resonance frequency fs 25 Hz
    Net weight 1.2 kg





    Driver Dimensions

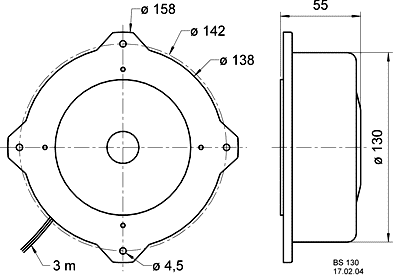

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
