BS 76 - 8 Ohm Exciter

Thumbnail Filmstrip of BS 76 - 8 Ohm Exciter Images

    Purchase BS 76 - 8 Ohm Exciter

    SKU: V-4511-BS76 BS 76 - 8 Ohm Exciter

    $57.00 each
    Brand: Visaton
    Quantity in Basket:  None

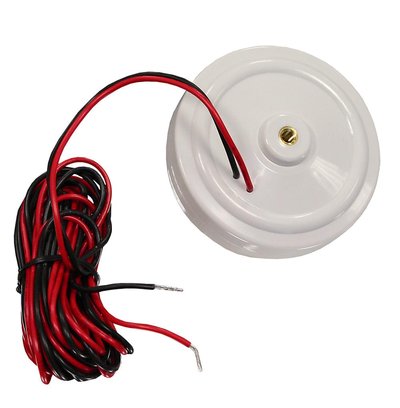

    Visaton Speaker Driver - BS 76 - 8 Ohm Exciter / Shaker / Vibration Speaker
    Art. No. 4511

    Visaton BS76 - 8 Ohm.
    Visaton BS76 - 8 Ohm



    Characteristics and Sound Properties
    Structure-borne sound converter for midrange- and high frequencies. The units are attached (with screw M5) to a surface which is able to resonate, which causes it to oscillate. No enclosed cabinet is required.

    Please find further information on exciters here: Basic principles of exciter-technology (PDF; 234 KB)



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Resonance frequency fs 200 Hz
    Net weight 0.41 kg
    Length of cable 3 m
    Protective system IP 68
    Temperature range -25 ... 80 °C

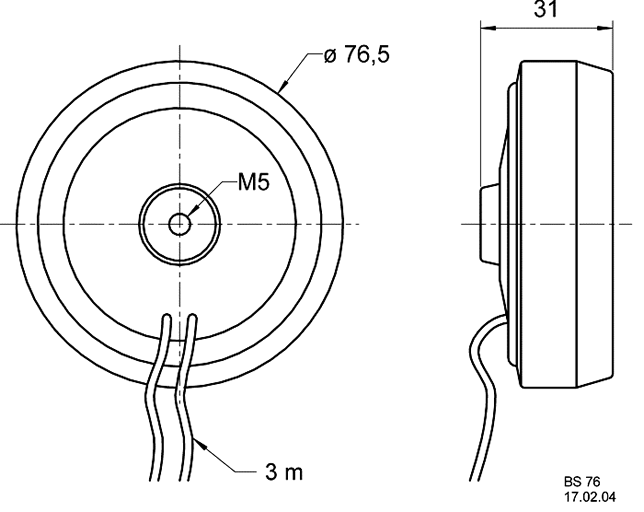

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
