EX 45 S - 8 Ohm Exciter

Thumbnail Filmstrip of EX 45 S - 8 Ohm Exciter Images

    Purchase EX 45 S - 8 Ohm Exciter

    SKU: V-4501-EX45S EX 45 S - 8 Ohm Exciter

    $59.00 each
    Brand: Visaton
    Quantity in Basket:  None

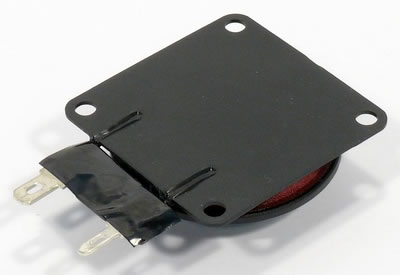

    Visaton Speaker Driver - EX 45 S - 8 Ohm Electro Dynamic Exciter
    Art. No. 4501

    Visaton EX 45S - 8 Ohm Electro dynamical exciter .

    EX 45 S 8 Ohm Panel Exciter
    Visaton EX45S - 8 Ohm Electro Dynamic Exciter



    Characteristics and Sound Properties
    Electro dynamical panel exciter / vibrator for stimulating bending waves on plates by vibrating. The unit can be attached to the surface of the plate by gluing or screwing. Please find further information on exciters here:
    Basic principles of exciter-technology (PDF)

    Typical applications:-
    - Signal output in every application where normal speakers can not be installed for optical reasons or for protection against environment conditions or vandalism.



    Technical Specifications

    Maximum power 10 W *)
    Nominal impedance Z 8 Ohm
    Voice coil diameter 25.4mm
    Connections
    4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
    Net Weight 0.06 kg
    Temperature range -25 ... 70 °C
    *) Maximum long term power according to DIN EN 60268-5

    Temperature Range

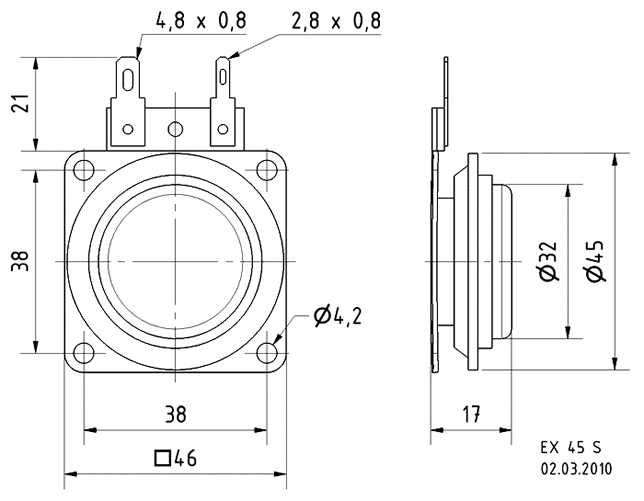

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Delete in Miva
    Loudspeaker Frequency and Impedance Response Graph
