Shark Fin Roof Mount Antenna AM FM GPS DAB 30cm Cable

Thumbnail Filmstrip of Shark Fin Roof Mount Antenna AM FM GPS DAB 30cm Cable Images

    Purchase Shark Fin Roof Mount Antenna AM FM GPS DAB 30cm Cable

    SKU: Roof-Aerial-AM-FM-DAB-GPS-30cm Shark Fin Roof Mount Antenna AM FM GPS DAB 30cm Cable

    $115.00 each
    Quantity in Basket:  None







    Soundlabs Group Amplified DAB / DAB+ / AM / FM / GPS Panel Mount Aerial Shark Fin

    This is a high quality roof or panel mount amplified DAB / AM / FM / GPS car antenna, see notes below. Ideal factory replacement or upgrade. Check mounting before ordering.

    FM

    • Frequency: 87.5-108 MHz
    • Impedance: 50 Ohm
    • Amplification: 20dB
    • VSWR: ≤2.5:1
    • Connector: FAKRA B Male
    • Power supply: +12V
    • Cable: 30cm RG174 (approx.)

    DAB

    • Frequency: 170MHz - 240MHz (Band III), 1452MHz - 1492MHz (L-Band)
    • Impedance: 50 Ohm
    • Amplification´╝Ü20dB
    • VSWR: ≤2.0:1
    • Connector: FAKRA G Male
    • Power supply: +12V
    • Cable: 30cm RG174 (approx.)

    GPS

    • Frequency: 1575.42 MHz
    • Impedance: 50 Ohm
    • Amplification: 28 ±3db
    • VSWR: ≤1.5:1
    • Gain: 32dBi
    • Connector: FAKRA C Male
    • Cable: 30cm RG174 (approx.)

    Notes:-

    • Ensure that a water proof seal is obtained during installation. Professional installation is recommended.
    • This aerial will provide reasonable FM reception and will pick up some AM; please keep in mind there is always a compromise when using a short antenna, you need a larger antenna for better clarity. Please see this listing.
    • Must not be mounted on a panel whose underside is exposed to the elements.
    • Mounting surface must be flat to within 1.5mm.
    • Max panel thickness: 2.5mm.




    Bottom section showing mounting.

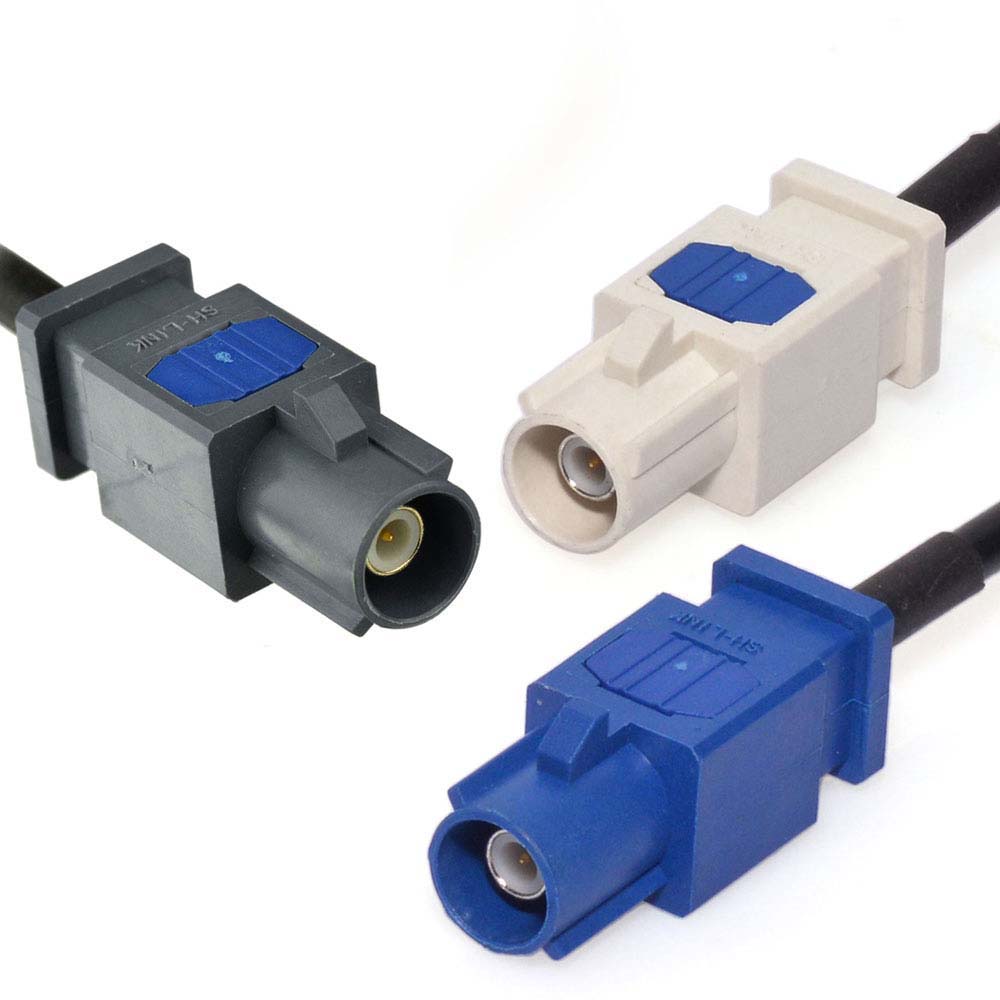

    Connections
