SKU: Whip-Antenna-DAB-AM-FM-Roof-Panel-Mount Amplified Whip Aerial DAB+ AM FM Roof Mount

Soundlabs Group Amplified DAB+ / AM / FM Universal Roof & Panel Mount Antenna

Upgrade your vehicle's reception with this high-performance, all-in-one antenna solution. Designed to be compatible with a vast range of vehicles and aftermarket head units, this unit combines DAB+, AM, and FM capabilities into a single mount. It is the perfect replacement for factory roof aerials, allowing you to add DAB+ digital radio without the need for messy glass-mount antennas. The integrated low-noise amplifier boosts signal strength across all bands, ensuring clear, stable reception even in fringe or poor signal areas. Versatile mounting options include the roof, fender, guard, or boot lid (optimal performance is achieved when mounted to a steel panel).

Specifications:

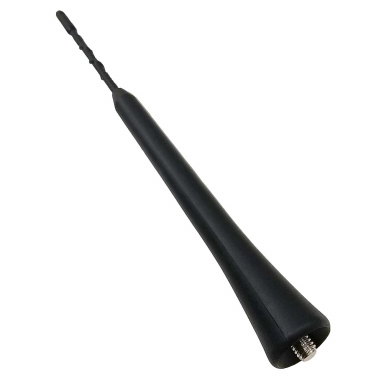

• Mast Length: Approx. 23 cm (Removable)
• Dimensions: 58 x 45 x 270 mm (Approx.)
• Antenna Angle: Approximately 75°
• Operating Voltage: 12V DC
• Current Consumption: Approx. 40mA
• DAB+ Gain: 10dB ±2dB
• FM/AM Gain: AM: 6dB / FM: 7dB

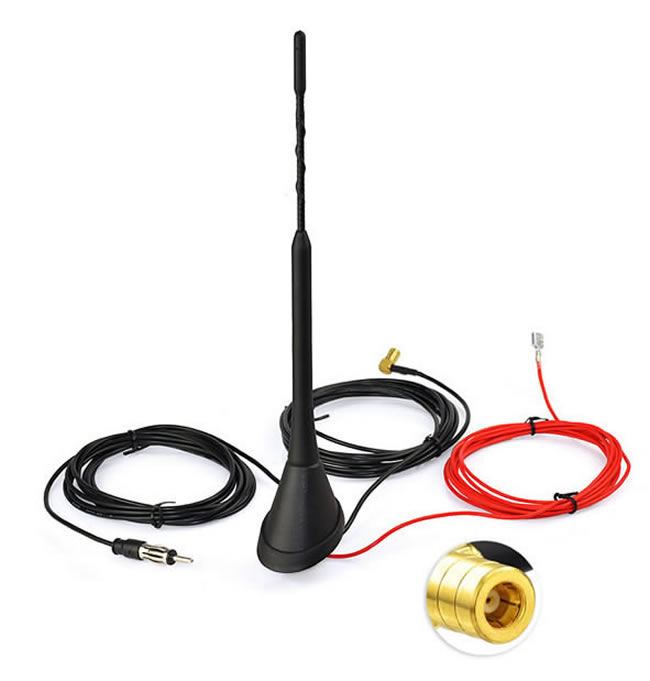

• DAB Connector: SMB (Female)
• FM / AM Connector: Standard DIN
• Cable Type: RG174
• Cable Length: 5m (Approx.)

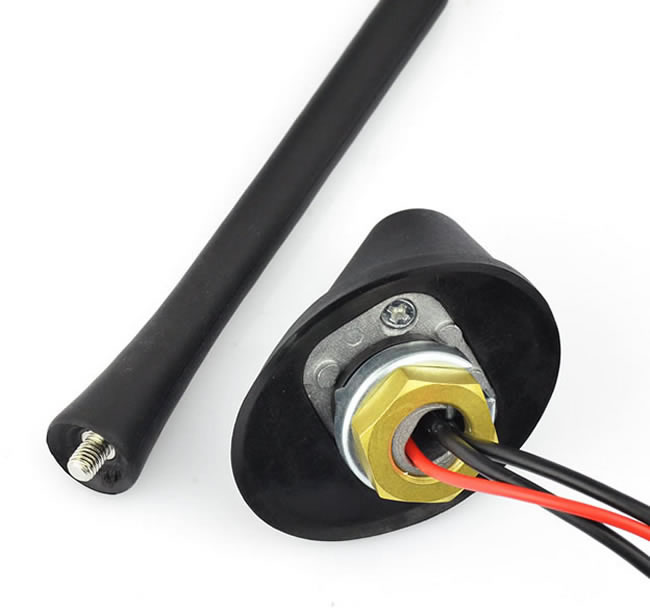

• Mounting Method: Nut & Bolt
• Required Hole Size: 14mm (Approx.)
• Impedance: 50 Ohm
• Frequency Range: 170MHz - 240MHz (Band III), 1452MHz - 1492MHz (L-Band)

Important Installation Notes:

• The antenna mast is detachable for convenience during car washes or when navigating low-clearance areas.
• Not suitable as a replacement for "bee-sting" aerials that require integrated GSM or GPS functions.
• Must be mounted on a sealed panel; the underside of the base must not be exposed to the elements.
• The 5m DAB+ / AM/FM cables are permanently attached to the base unit.
• Maximum Panel Thickness: 2.5mm.
• Ensure a water-tight seal upon installation and check for leaks to protect your vehicle's interior.

Frequently Asked Questions (FAQ):

• Will this work with my aftermarket radio?
  Yes. This antenna uses a standard DIN connector for AM/FM and an SMB (Female) connector for DAB+, which is the standard for most aftermarket units (RetroSound, Continental, Blaupunkt, Kenwood, Alpine, JVC, Pioneer, etc.).
• Do I need an additional signal booster?
  No. This unit has a high-performance amplifier built-in, designed specifically to improve reception in fringe DAB+ and AM/FM areas across Australia.
• Can I use this on a fibreglass or plastic roof?
  While it can be mounted, for the best reception, the base needs to be in contact with a metal surface to act as a "ground plane." If mounting on fibreglass, you may need to install a small metal plate on the underside.
• Is the mast flexible for off-roading?
  The mast is sturdy but can be easily unscrewed by hand if you are entering a low-clearance garage or driving through heavy scrub/low-hanging trees.
• Does this replace my GPS/Navigation antenna?
  No. This antenna is dedicated to DAB+, AM, and FM radio only. It does not support GPS or GSM (mobile phone) signals.
