    Visaton Speaker Driver - WL 21.33 - 100 V Wall Mounted Speaker
    Art. No. 50371

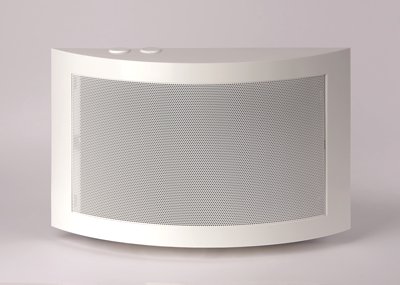

    Visaton WL 21.33 - 100V Wall Mounted Speaker.
    Visaton WL21.33 - 100V Wall Mounted Speaker.



    Characteristics and Sound Properties
    Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver, a 100 V transformer and a fire-proof ceramic terminal with thermal fuse (fire damage at the speaker does not affect the function of the entire system). Very high efficiency, clear speech reproduction properties.



    Technical Specifications

    Transformer matching 6; 3; 1.5 W
    Sound pressure level 98 dB (1 W/1 m) @ 1200 Hz
    Frequency response 160–20000 Hz
    Mean sound pressure level
    95 dB (1 W/1 m)
    Max. sound pressure level 102 dB (6 W/1 m)
    Opening angle (-6 dB) 89°/4000 Hz hor.
    47°/4000 Hz vert
    Net weight 1.47 kg
    Temperature range −25 ... 70 °C
    Temperature Range

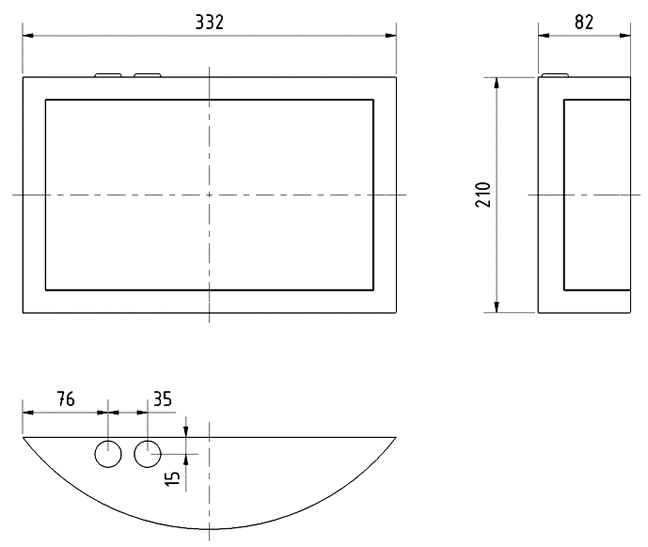

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

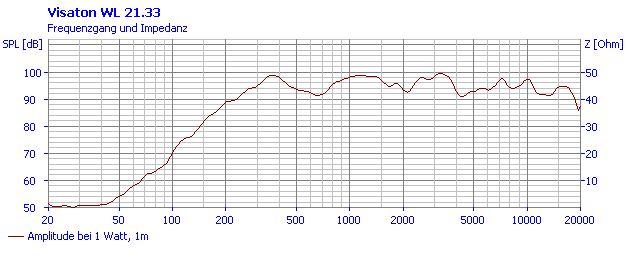

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

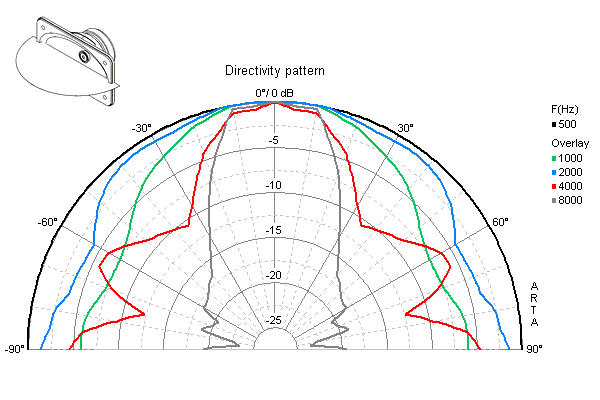

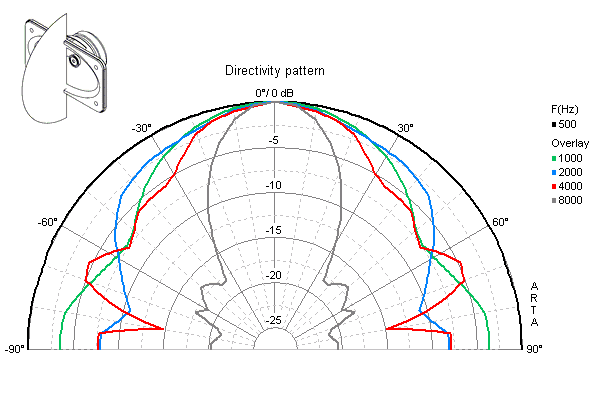

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)



    Directivity Pattern Visaton WL 2133 100V Wall Speaker
    Loudspeaker Directivity Pattern (on and off axis response)
