WL 13 NR P - 100V

Thumbnail Filmstrip of WL 13 NR P - 100V Images

    Purchase WL 13 NR P - 100V

    SKU: V-50304-WL13NRP WL 13 NR P - 100V

    $89.00 each
    Brand: Visaton
    Quantity in Basket:  None



    2 available.




    Visaton Speaker Driver - W13 NR P - 100 V Wall Mounted Speaker
    Art. No. 50304

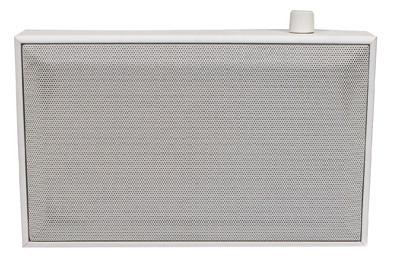

    Visaton W13NRP - 100V Wall Mounted Speaker.
    Visaton W13NRP - 100V Wall Mounted Speaker



    Characteristics and Sound Properties
    Wall-mounted speaker with a volume control-knob and priority relay, wooden cabinet and metal grille. Fitted with a high quality full range driver. Removable rear panel for easy fitting to the wall using two screws. Good music reproduction and clear speech reproduction properties. Connection to 100 V network and level trimming by means of spring terminal. Also available: - WL 13 N - 100 V (without volume control) - WL 13 NR - 100 V (with volume control, without priority relay).

    Typical applications:-
    - Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds

    Attributes:-

    - 100 V transformer
    - Wooden cabinet with rear panel
    - Level control
    - Priority relay (breaking voltage 24 V)



    Technical Specifications

    Transformer matching 6; 3; 1.5 W
    Sound pressure level 96 dB (1 W/1 m) @ 4954 Hz
    Frequency response 90–20000 Hz
    Mean sound pressure level 88 dB (1 W/1 m)
    Max. sound pressure level 96 dB (6 W/1m)
    Opening angle (-6 dB) 79°/4000 Hz hor.
    61°/4000 Hz vert.
    Net weight 1.4 kg
    Temperature range −25 ... +70 °C
    Colour RAL 9010
    Temperature Range

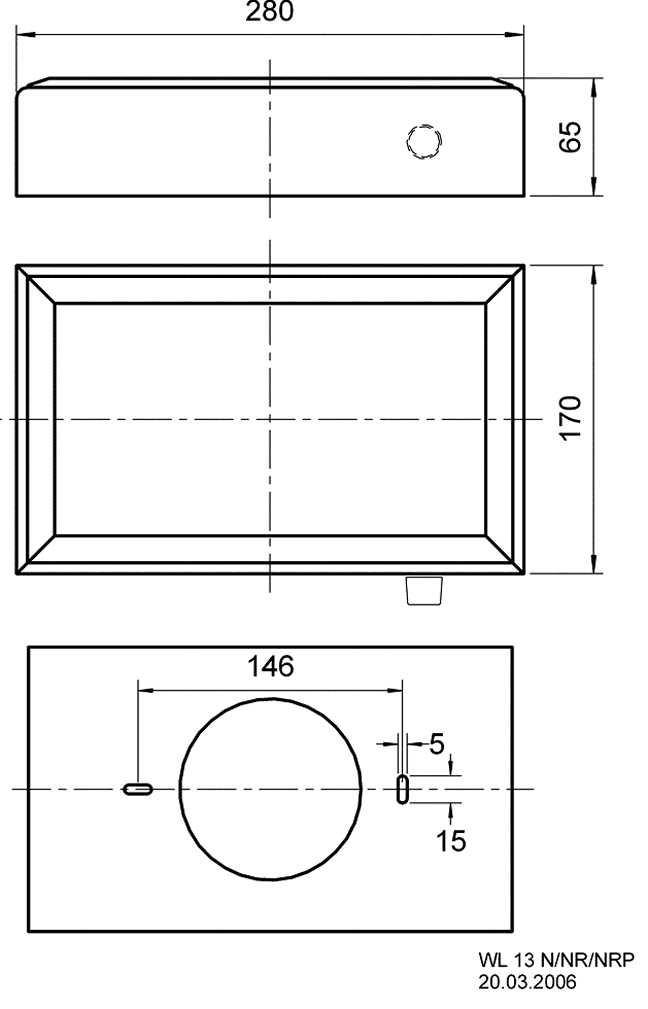

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

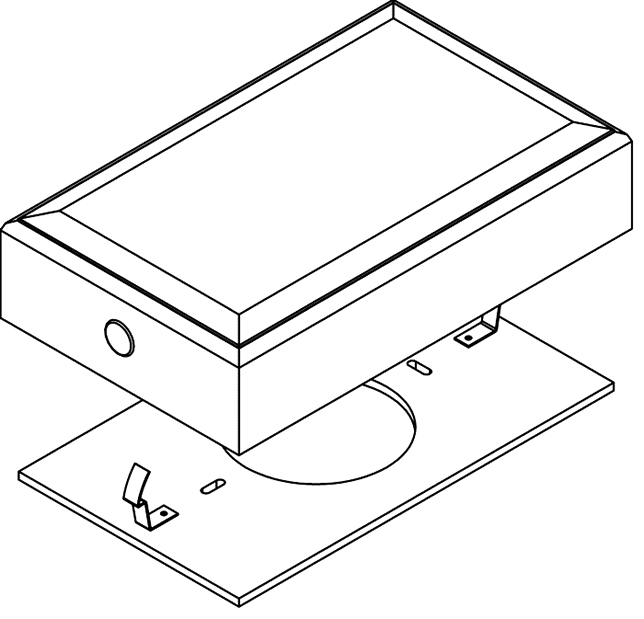

    Assembly W13 NRP -100 V


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

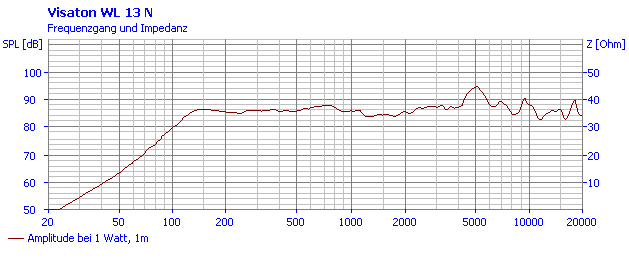

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

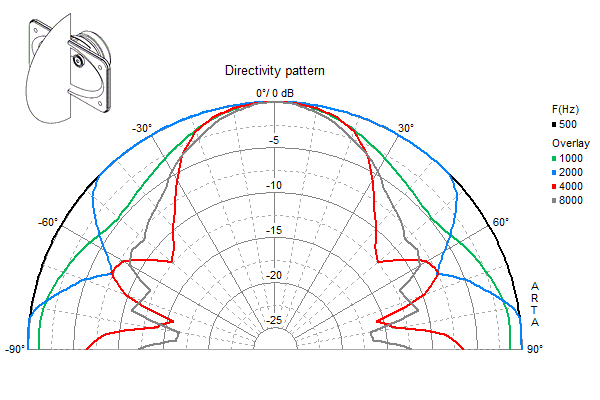

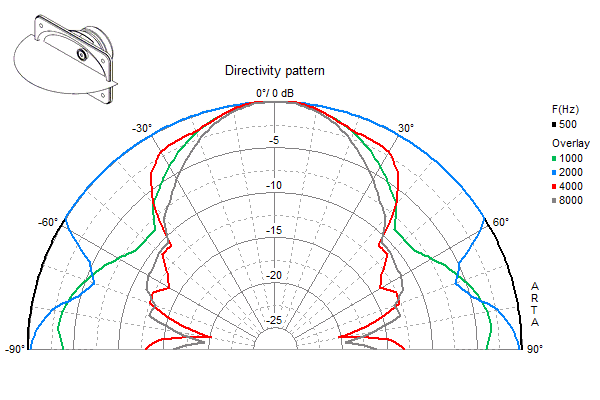

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    Directivity pattern WL 13 NR P - 100 Volt Visaton Speaker
    Loudspeaker Directivity Pattern (on and off axis response)
