WL 10 P - 100V

Thumbnail Filmstrip of WL 10 P - 100V Images

    Purchase WL 10 P - 100V

    SKU: V-50329-WL10P WL 10 P - 100V

    $103.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WL 10 P - 100 V Waterproof Cabinet Speaker
    Art. No. 50329

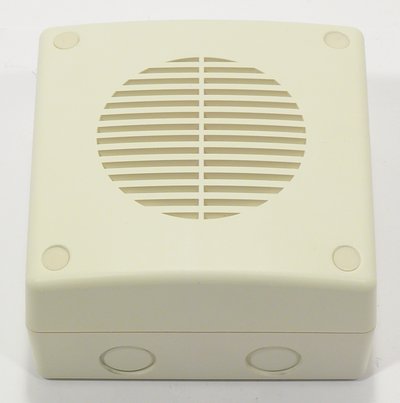

    Visaton WL10P - 100V Waterproof Cabinet Speaker.

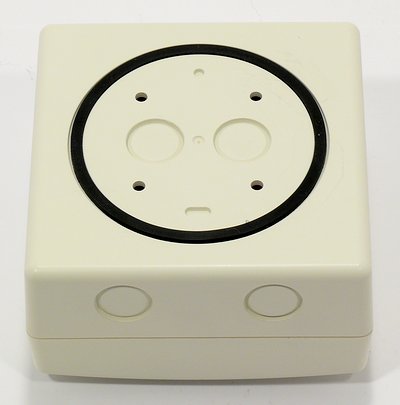

    Visaton WL10P - 100V Waterproof Cabinet Speaker - rear view..
    Visaton WL10P - 100V Waterproof Cabinet Speaker



    Characteristics and Sound Properties
    Waterproof cabinet speaker with 100 V transformer. Robust white plastic cabinet with integrated protective grille. Different transformer tappings for the 100 V network level adjustment.

    High efficiency, wide frequency range with clear high-range for good speech intelligibility. Suitable for background music as well.

    Typical applications:-
    - Wall and ceiling mounted loudspeaker for speech and music reproduction in hotel rooms, wet areas (showers, bath rooms), staircases etc.
    - Outdoor loudspeaker for patios, ships, public places etc.

    Attributes:-
    - Waterproof (IP 66)
    - UV-resistant
    - Cabinet material: ABS
    - Ceramic terminal and thermal fuse
    - Moisture-resistant membrane
    - Internal terminals, additional terminal box not necessary



    Technical Specifications

    Transformer matching 6; 4; 2; 1; 0.5 W
    Sound pressure level 90 dB (1 W/1 m) @ 2800 Hz
    Frequency response 220–11000 Hz
    Mean sound pressure level 86 dB (1 W/1 m)
    Max. sound pressure level 94 dB (6 W/1 m)
    Opening angle (-6 dB) 76°/4000 Hz
    Net weight 0.55 kg
    Protective system IP 66
    Temperature range −20 ... 60 °C





    Driver Dimensions

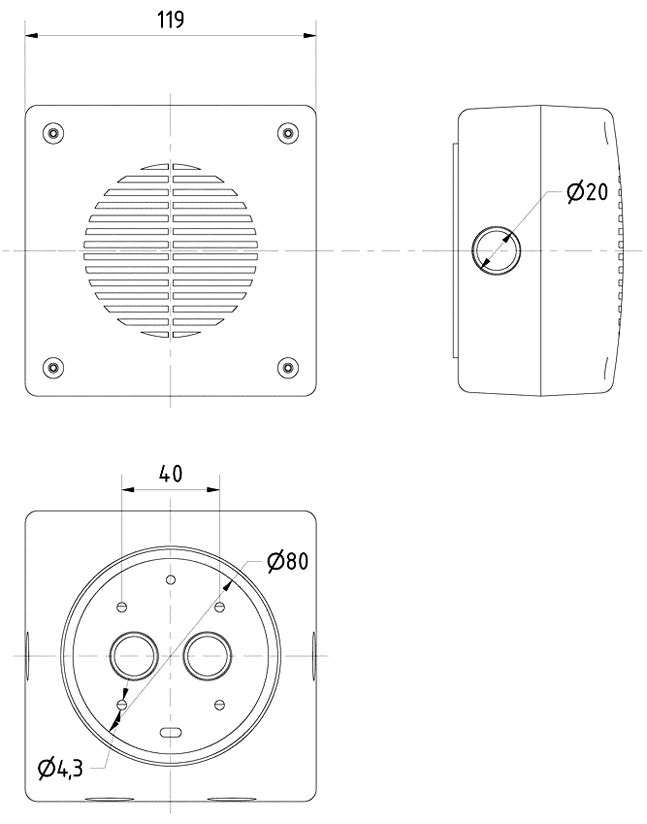

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

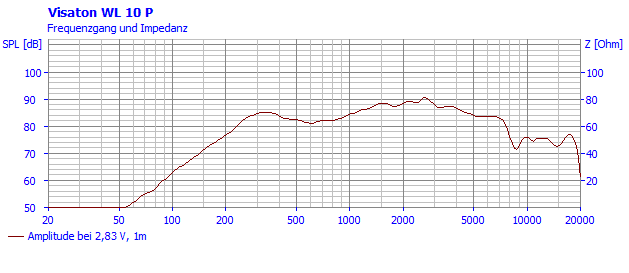

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

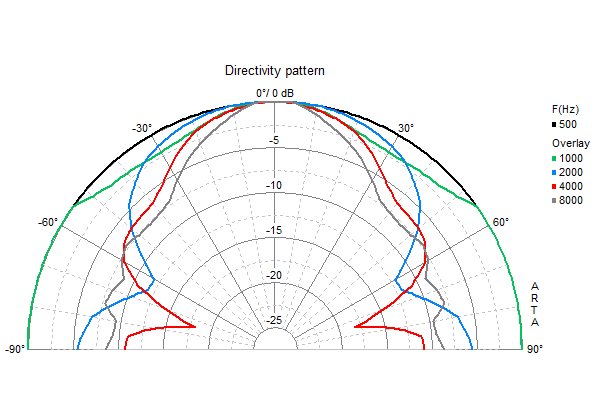

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
