WL 13 PR - 100V

Thumbnail Filmstrip of WL 13 PR - 100V Images

    Purchase WL 13 PR - 100V

    SKU: V-50323-WL13PR WL 13 PR - 100V

    $145.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WL 13 PR - 100 V Wall Mounted Speaker
    Art. No. 50323

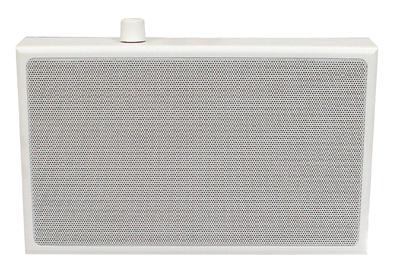

    Visaton WL13PR - 100V Wall Mounted Speaker.
    Visaton WL13PR - 100V Wall Mounted Speaker.



    Characteristics and Sound Properties
    Wall-mounted speaker with a volume control-knob, white plastic cabinet and metal grille. Fitted with a full range driver. Good music reproduction and clear speech reproduction properties. Connection to 100 volt network and level trimming by means of spring terminal.

    Also available: - WL 13 P - 100 V (without volume control)

    Typical applications:-
    - Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds

    Attributes:-

    - 100 V transformer
    - Level control
    - Plastic: ABS V0 (UL 94: V-0)



    Technical Specifications

    Transformer matching 6; 3; 1.5 W
    Sound pressure level 94 dB (1 W/1 m) @ 5312 Hz
    Sensitivity 90 dB (1 W/1 m; 700–7000 Hz)
    Frequency response 90–16000 Hz
    Mean sound pressure level 88 dB (1 W/1 m)
    Max. sound pressure level 96 dB (1W/1m)
    Opening angle (-6 dB) 74°/4000 Hz hor.
    67°/4000 Hz vert.
    Net weight 1.15 kg
    Temperature range 0 ... +70 °C





    Driver Dimensions



    Assembly W13 NRP -100 V

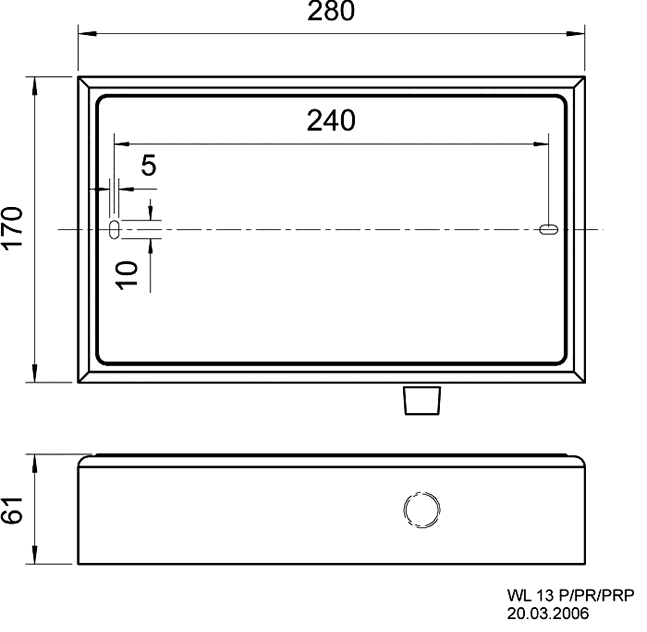

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

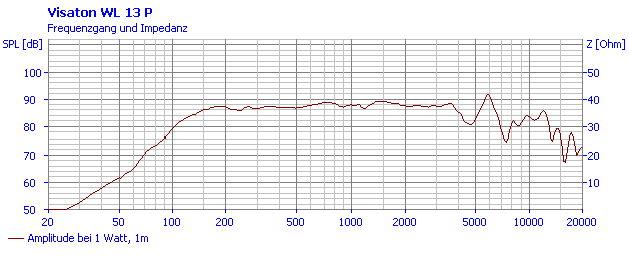

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

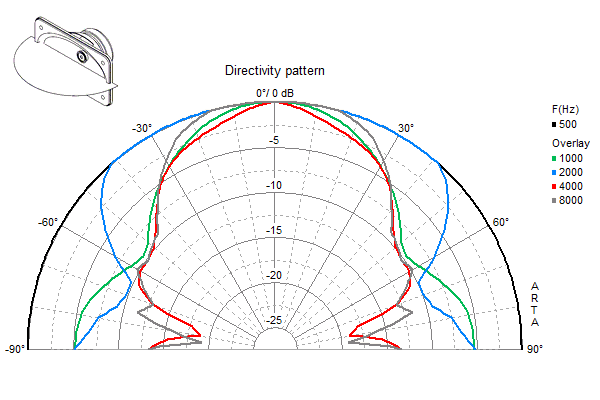

    Loudspeaker Directivity Pattern (on and off axis response)

    Directivity pattern WL 13 NR P - 100 Volt Visaton Speaker

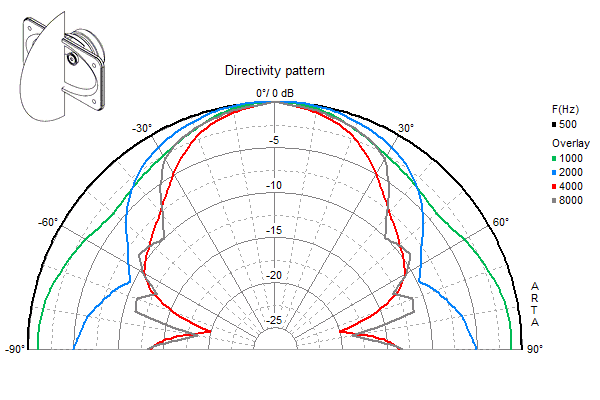

    Loudspeaker Directivity Pattern (on and off axis response)
