DL 8 - 100V

Thumbnail Filmstrip of DL 8 - 100V Images

    Purchase DL 8 - 100V

    SKU: V-50198-DL8 DL 8 - 100V

    $81.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 8 - 100 V Ceiling Mounted Speaker
    Art. No. 50198

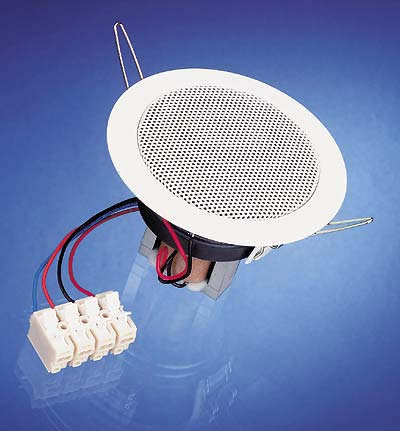

    Visaton DL8 -  100V.

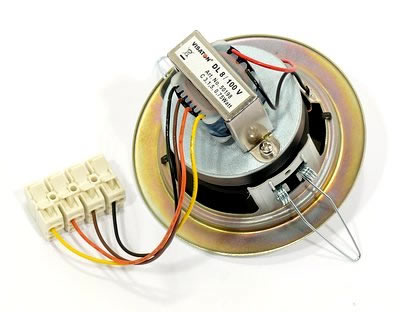

    DL8 100V Driver rear view.
    Visaton DL8 - 100 V



    Characteristics and Sound Properties
    8 cm (3.3") ceiling-mounted speaker with white metal cover (RAL 9010). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities. Smaller voice coil enlarges the sound pressure level.

    DL 8 can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    *) IP protection class for front side when built into a sealed enclosure

    Typical applications
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.

    Attributes
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible - functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Ball-resistant
    - 100 V transformer



    Technical Specifications

    Transformer matching 3; 1.5; 0.75 W
    Sound pressure level 90 dB (1 W/1 m)
    @ 3600 Hz
    Frequency response 90-18000 Hz
    Mean sound pressure level 87 dB (1W/1m)
    Max. sound pressure level 91 dB (3 W/1 m)
    Opening angle (-6 dB) 112°/4000 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 14 mm
    Cutout diameter 93 mm
    Net weight 0.515 kg
    Length of cable 0.15 m
    Protective system IP 54*
    Temperature range −40 ... 110 °C
    Colour RAL 9010

    Temperature Range

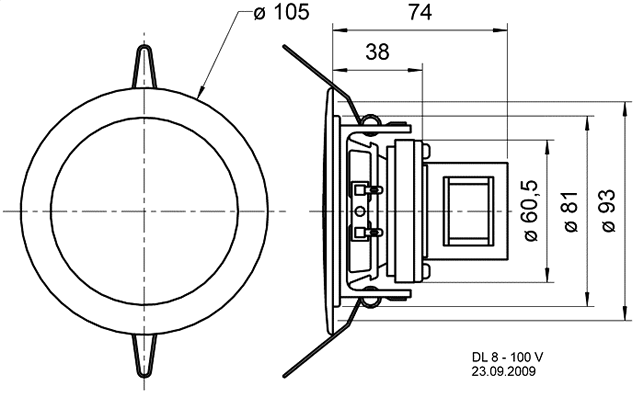

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

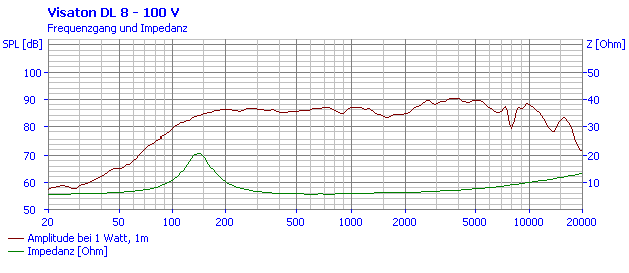

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
