    Visaton Speaker Driver - DL 10 - 20 Ohm Ceiling Mounted Speaker
    Art. No. 50117

    Visaton DL10 - 20 Ohm.
    Visaton DL10 - 20 Ohm



    Characteristics and Sound Properties
    10 cm (4") ceiling-mounted speaker with white metal cover (RAL 9010). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms. A push-terminal block allows quick and easy connection. A compact solution for home and professional use with good sound qualities.

    DL 10 can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems (F30) are also available.
    *) IP protection class for front side when built into a sealed enclosure.

    Typical applications
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.

    Attributes
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h) •up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Ball-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 20 Ohm
    Sound pressure level 90dB (1 W/1 m)
    @ 6594 Hz
    Frequency response 75-20000 Hz
    Mean sound pressure level 87 dB (1W/1m)
    Dispersion angle (-6 dB) 82°/4000 Hz
    Excursion limit 5 mm
    Resonance frequency fs 130 Hz
    Magnetic induction 0.7 T
    Magnetic flux 130 µWb
    Voice coil diameter 20 mm
    Cutout diameter 110 mm
    Net weight 0.4 kg
    Length of cable 0.1 m
    Protective system IP 54*
    Temperature range -40 ... 110 °C
    Colour RAL 9010

      Temperature Range

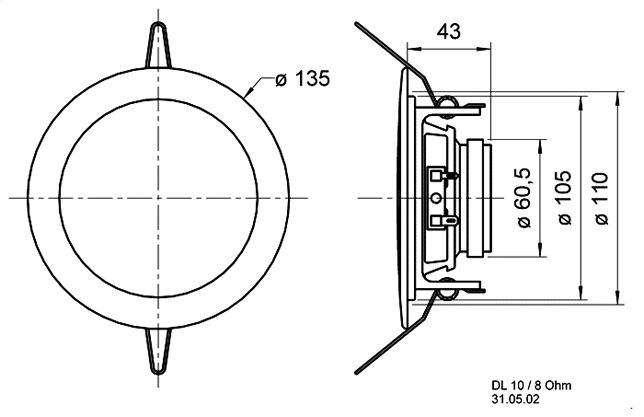

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

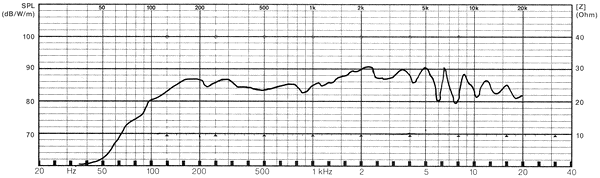

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
