DL 10 - 100V

Thumbnail Filmstrip of DL 10 - 100V Images

    Purchase DL 10 - 100V

    SKU: V-50111-DL10 DL 10 - 100V

    $91.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 10 - 100 V Ceiling Mounted Speaker
    Art. No. 50111

    Visaton DL10 - 100V Ceiling Speaker.

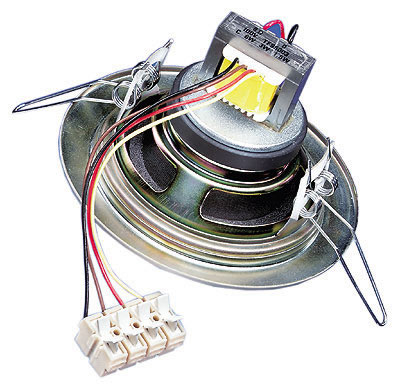

    Visaton DL10 - 100V Ceiling Speaker rear view.
    Visaton DL10 - 100V



    Characteristics and Sound Properties
    10 cm (4") ceiling speaker with white metal cover (RAL 9010). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms. A push-terminal block allows quick and easy connection to the 100V network including any necessary level adjustment. A compact solution for home and professional use with good sound qualities.

    DL 10 can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems (F30) are also available.
    *) IP protection class for front side when built into a sealed enclosure.

    Typical applications:
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
    - Restaurants
    - Shopping centres
    - Public places, airports, railway stations, bus stations
    - Schools, universities

    Attributes:
    - Moisturised cone
    - UV-resistant
    - Metal basket, non-corrodible
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Ball-resistant



    Technical Specifications

    Transformer matching 6; 3; 1.5 W
    Sound pressure level 90dB (1W/1 m)
    @ 2100Hz
    Frequency response 75-20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Max. sound pressure level 94 dB (6W/1 m)
    Opening angle (-6 dB) 82°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 140 Hz
    Magnetic induction 0.7 T
    Magnetic flux 130 µWb
    Voice coil diameter 20 mm
    Cutout diameter 110 mm
    Net weight 0.545 kg
    Length of cable 0.2 m
    Protective system IP 54 *)
    Temperature range -40 ... 110 °C
    Colour RAL 9010

     Temperature Range







    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

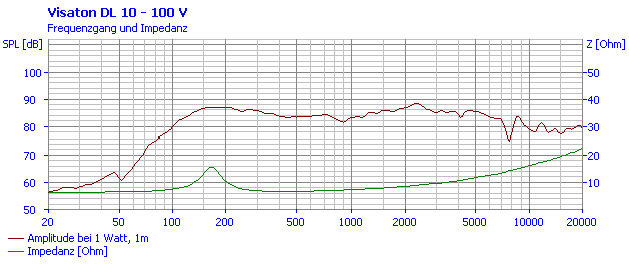

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
