DL 10 ES - 8 Ohm

Thumbnail Filmstrip of DL 10 ES - 8 Ohm Images

    Purchase DL 10 ES - 8 Ohm

    SKU: V-50012-DL10ES DL 10 ES - 8 Ohm

    $135.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 10 ES - 8 Ohm Ceiling Mounted Speaker
    Art. No. 50012

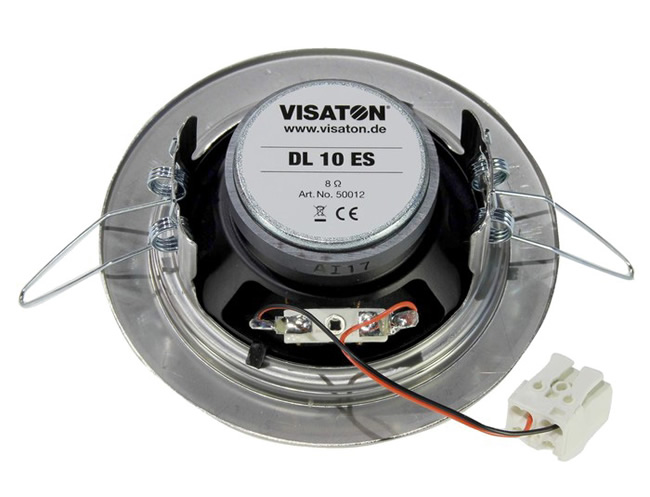

    Visaton DL 10 ES 8 Ohm Ceiling Mounted Speaker Stainless SteelVisaton DL 10 ES 8 Ohm Ceiling Mounted Speaker Stainless Steel Rear View

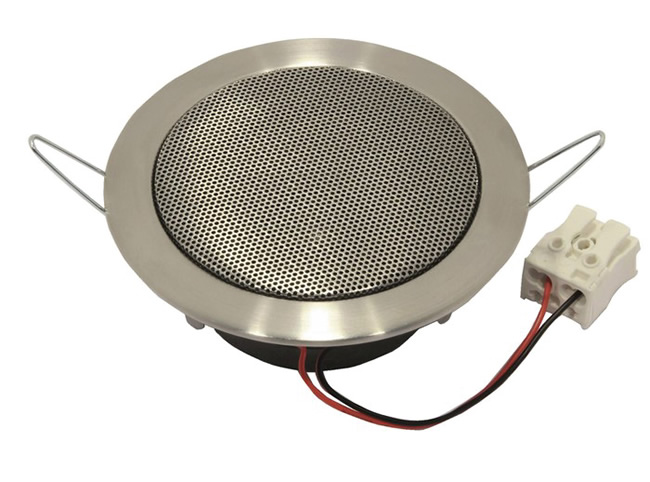

    Visaton DL 10 ES 8 Ohm Ceiling Mounted Speaker Stainless Steel



    Characteristics and Sound Properties
    10 cm (4") ceiling-mounted speaker made of stainless steel with brushed finish. Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities.

    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    -Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)

    Typical applications:

    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
    - Suitable for outdoor applications

    Attributes:

    -Moisture-resistant membrane
    - UV-resistant Meatal basket, non-corrodible
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    - Ball-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Frequency response

    75-20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 82°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 140 Hz
    Magnetic induction 0.7 T
    Magnetic flux 130 uWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 6 mm
    Cutout diameter 110 mm
    Net weight 0.39
    Sound pressure level 90 dB (1 W/1 m) @ 2100 Hz
    Colour stainless steel with brushed finish
    Mounting depth 0.43
    Length of cable 0.1
    Protective sytem IP 54 *)
    Temperature range -40 ... 110 °C

    Temperature Range

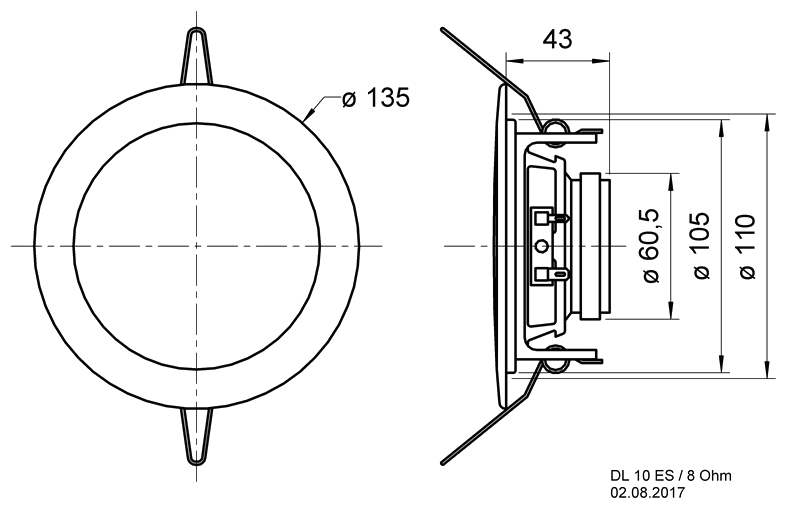

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

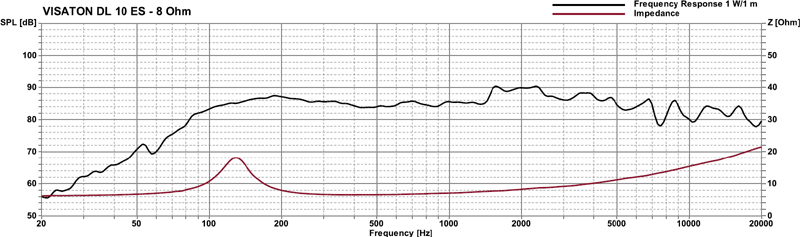

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

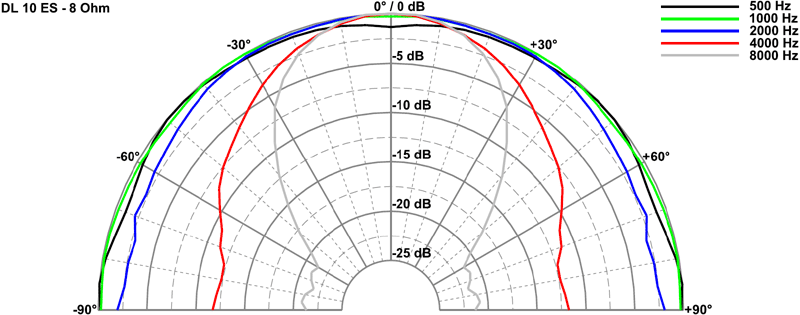

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
