SKU: Blaupunkt-Stockholm-400 Blaupunkt Stockholm 400 DAB CD USB Bluetooth Car Radio

Blaupunkt Stockholm 400 DAB - CD/MP3 car stereo with Bluetooth / DAB / USB / iPod / AUX-IN

This classically designed car radio is an ideal replacement radio for single DIN radios. Ideal for restorers this radio features CD, Bluetooth, DAB, USB, is iPod compatible and has AM and FM. It has a 7 colour display, dim function and a non-volatile memory.

Hands free calling an music streaming make this radio ideal for short or long trips, as many car radios don't have CD players now this is ideal for those who just love listening to CDs.

Features

• High-End CODEM IV High-End World Tuner
• FM, AM, DAB, DAB+ tuner with PS, AF, REG, EON, RT, CT, PTY, TA, Service following, DLS
• USB front, rear AUX CD, CD-R, CD-RW MP2, MP3, WMA, FLAC, M4A/ AAC, WAV Support
• Apple iPod Support
• Bluetooth telephony via international or external microphone
• Audio streaming with ID3 title display
• Access to voice assistants (Siri, Google, Alexa)
• Wake-up on call Phonebook access
• Sound Presets Loudness 4-channel preamp output + 2 sub-out
• 4 x 50 watts
• Multi Colour (7 colours)
• DIM function
• Persistent memory
• SWC input (analog)

Radio Tuner

• Tuner type: High-end automotive tuner Blaupunkt CODEM
• Frequency bands: FM, AM, DAB, DAB+
• FM frequency band: 87.5 - 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174.928- 239.200 MHz)
• Number of station presets: FM1, FM2, FMT (15x FM), AM1 (5x AM), DAB1-3 (15x DAB)
• Station storage levels can be deactivated: FM2, FMT, AM, DAB2, DAB3
• Channel display (PS)
• Radiotext
• FM/ DAB RDS Time (CT)
• Travelstore/ Memory Travelstore: (5x FMT)
• Band Scan + Preset Scan FM/ DAB
• Sensitivity (FM): Two levels (lo/ dx)
• Noise Suppression (FM) Hi-Cut (FM): (multi-stage switchable)
• DAB-DAB Service following DAB-FM Service following
• Service Scan Ensemble / Service Change Service Browsing
• Frequency response FM (Hz) -3 dB: 30 - 15,000
• Frequency response DAB (Hz) +/- 3 dB: 20 - 20,000

Media Player

• AUX Rear: (3.5mm jack)
• AUX-IN activation: manual, can be deactivated in the menu
• USB front: (Type A, covered socket)
• Concealed front entrances: (USB) Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum memory size (USB): > 128 GB
• Maximum number of files / folders (USB): > 20000
• CD drive (for CDDA, CD-R, CD-RW)
• Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
• Display options (depending on file format): ID3V2 (title, artist, Album), folder, file, playtime
• Folder & File Browsing
• Scrolling: (one-time/repetitive)
• iPod, iPhone Control: (via USB)
• Shuffle Folder/ Media Repetition Title/ Folder/ All
• Introscan

Bluetooth

• Telephone Internal microphone
• Possibility of connecting external microphone
• Accept/reject call
• Access phone book: (max. 1000 numbers)
• Audio Streaming
• Audio Streaming ID3 Track Display: (Title, Artist, Album, Playing Time)
• Scrolling: (one-time/repetitive)
• Access to voice assistants (e.g. Siri, Google, Alexa)
• Auto wake-up on call: (when radio off + ignition on)
• Fast pairing without a PIN
• Automatic reconnection
• Bluetooth Version: 5.0 LE
• Number of paired devices: max. last 5
• Number at the same time verb.
• Devices: max. 1 Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC
• Availability/support of the functions depend on the user phone/app used!

Sound

• Equalizer: Sound presets
• Bass / treble adjustment: (+/- 7 levels)
• Balance/ Fader: (+/- 9 levels) Loudness
• Sound Presets: Rock, Pop, Classical
• Source-specific sound setting Speaker outputs (channels): 4
• Preamp outputs (channels, voltage): 4 (RCA, < 2V)
• Sub-Out (channels, voltage): 2 (RCA, < 2V, gain/frequency variable)
• Max. power: 4 x 50 watts
• Sinusoidal power at 14.4 V: 4 x 24 watts (according to DIN 45324)

General

• Display: LCD, negative, anti-reflective, wide-angle, alphanumeric + Symbols
• Lighting color display/buttons: Multi Color, 7 colors (white, green, yellow, red, purple, blue, light blue)
• Day/night mode: Yes (manual/via dimmer connection)
• Brightness: Multi-level, variable (16 levels)
• Time display HMI Languages: English, German Low standby current: (< 3.5 mA)

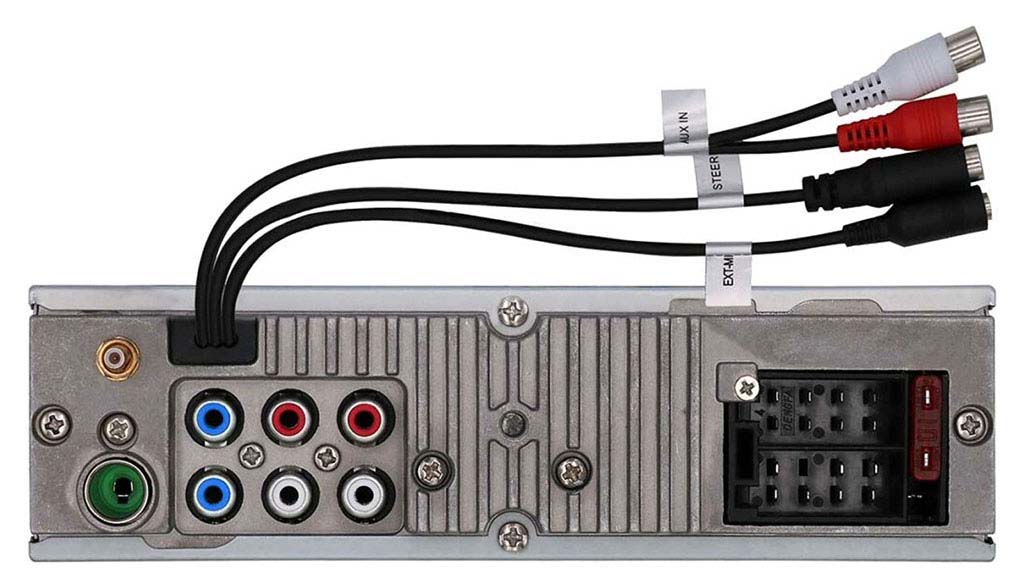

• Antenna inputs: FM DIN/ ISO (adapter), DAB SMB (DAB with 12V Phantom power)
• Mute Input/ Telephone Mute: (ground-active)
• Ext. hands-free microphone connection
• Variable scan time: (4, 8, 12, 16, 60s)
• Confirmation beep: (can be deactivated)
• Keypad Type: Fixed Panel
• Colour panel/décor ring: black/black
• Software Update: via USB Permanent Memory: (Settings & Presets)
• Demo Mode
• Weight: approx. 1.45 kg
• Dimensions: housing 52 x 178 x 170mm, front 188 x 58mm (H x W x D)
• Operating voltage: 10.5 - 14.4 V
• Power consumption: operating: < 10A, 10 sec after shutdown ACC: < 3.5 Ma

Scope of delivery

• External BT Microphone: (5 104 020 001 001)
• Unlocking tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN/ ISO)
