SC 8 N - 8 Ohm

Thumbnail Filmstrip of SC 8 N - 8 Ohm Images

    Purchase SC 8 N - 8 Ohm

    SKU: V-8018-SC8N SC 8 N - 8 Ohm

    $47.00 each
    Brand: Visaton
    Quantity in Basket:  None

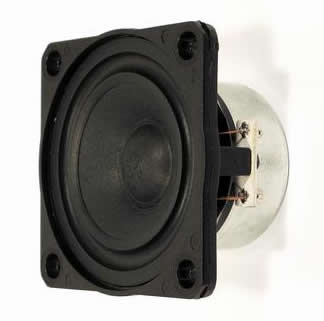

    Visaton Speaker Driver - SC 8 N - 8 Ohm Fullrange Magnetically Shielded Speaker
    Art. No. 8018

    Visaton SC8N - 8 Ohm Fullrange magnetically shielded speaker.
    Visaton SC8N - 8 Ohm Fullrange magnetically shielded speaker.



    Characteristics and Sound Properties
    Magnetically shielded 8 cm (3.3") fullrange driver with cellulose cone and inverted rubber surround. Very balanced frequency response. In conjunction with the shielded tweeter SC 5 - 8 Ohm especially suitable for small magnetically shielded 2-way combinations such as Multi Media systems.

    Typical applications:-
    - Surround centre speakers
    - Multimedia systems
    -Video monitoring screens
    - TVs
    - Computer terminals

    Attributes:-
    - Plastic: ABS V0 (UL 94: V-0)
    - Moisturised cone
    - Magnetically shielded



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 8 Ohm
    Frequency response 70–20000 Hz
    Mean sound pressure level 81dB (1W/1m)
    Opening angle (-6 dB) 150°/4000 Hz
    Excursion limit ± 3 mm
    Resonance frequency fs 110 Hz
    Magnetic induction 0.9 T
    Magnetic flux 170 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 4 mm
    Cutout diameter 73 mm
    Net weight 0.28 kg
    DC resistance Rdc 7.0 Ohm
    Mechanical Q factor Qms 3.68
    Electrical Q factor Qes 1.31
    Total Q factor Qts 0.97
    Equivalent volume Vas 1.5 litres
    Effective piston area Sd 26 cm2
    Dynamically moved mass Mms 1.9 grams
    Force factor Bxl 2.4 Tm
    Inductance of the voice coil L 0.3 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature range −25 ... 70 °C
    Temperature Range

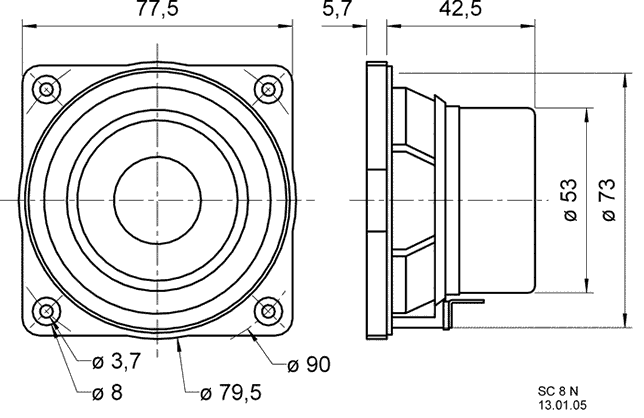

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

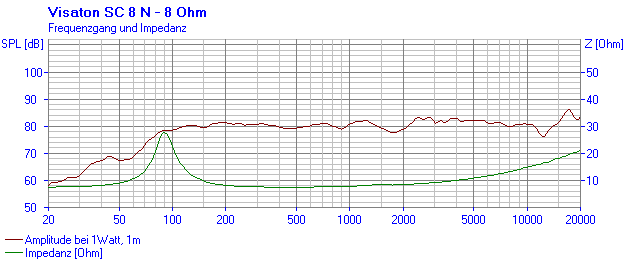

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

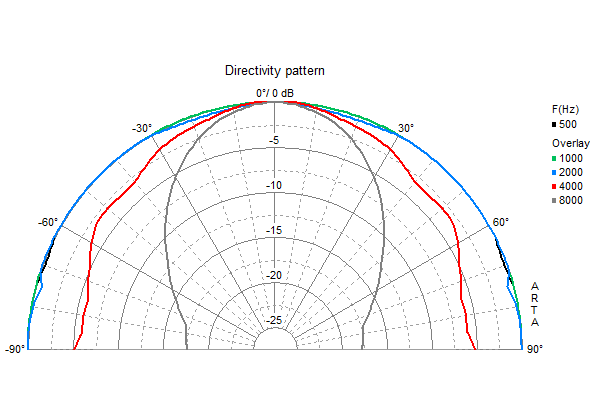

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
