F 8 SC - 8 Ohm

Thumbnail Filmstrip of F 8 SC - 8 Ohm Images

    Purchase F 8 SC - 8 Ohm

    SKU: V-8028-F8SC F 8 SC - 8 Ohm

    $29.00 each
    Brand: Visaton
    Quantity in Basket:  None

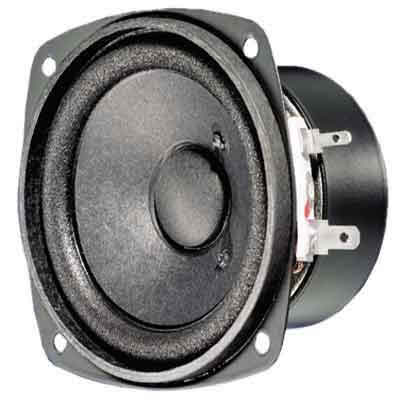

    Visaton Speaker Driver - F 8 SC - 8 Ohm - Magnetically Shielded Full Range
    Art. No. 8028

    Visaton F8SC - 8 Ohm Full Range.
    Visaton F8SC - 8 Ohm Full-Range



    Characteristics and Sound Properties
    Magnetically shielded 8 cm (3,3") full-range driver with balanced frequency response. Particularly suitable for smaller multimedia applications. Very good value for money.

    Typical applications:-
    - Multimedia systems
    - Video monitoring screens
    - TVs
    - Computer terminals

    Attributes:-

    - Moisturised cone
    - Metal basket
    - Magnetically shielded



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Frequency response 80–15000 Hz
    Mean sound pressure level 82 dB (1 W/1 m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 125 Hz
    Magnetic induction 0.8 T
    Magnetic flux 150 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 4.5 mm
    Cutout diameter 76 mm
    Net weight 0.25 kg
    DC resistance Rdc 7.9 Ohm
    Mechanical Q factor Qms 2.94
    Electrical Q factor Qes 1.29
    Total Q factor Qts 0.9
    Equivalent volume Vas 1.0 litres
    Effective piston area Sd 30 cm2
    Dynamically moved mass Mms 2 grams
    Force factor Bxl 2.2 Tm
    Inductance of the voice coil L 0.3 mH
    Temperature range −25 ... 70 °C

    Temperature Range

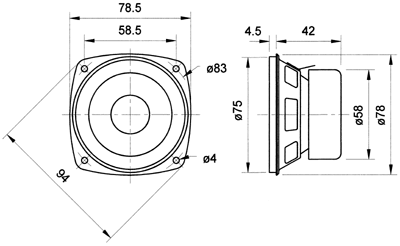

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

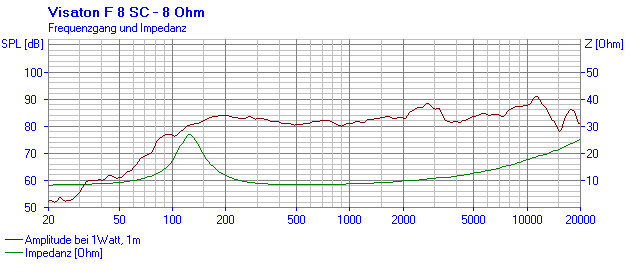

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

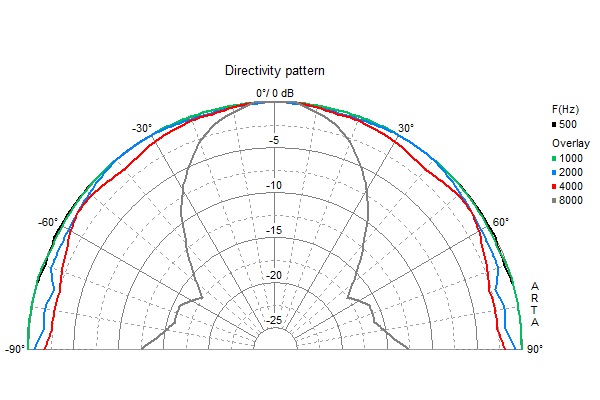

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
