SC 5 - 8 Ohm

Thumbnail Filmstrip of SC 5 - 8 Ohm Images

    Purchase SC 5 - 8 Ohm

    SKU: V-8005-SC5 SC 5 - 8 Ohm

    $29.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - SC 5 - 8 Ohm Polycarbonate Dome Tweeter
    Art. No. 8005

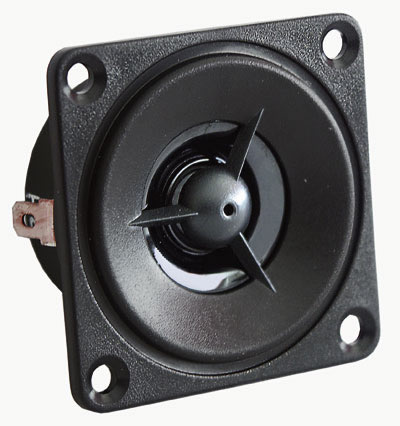

    Visaton SC 5 - 8 Ohm Polycarbonate Dome Tweeter.

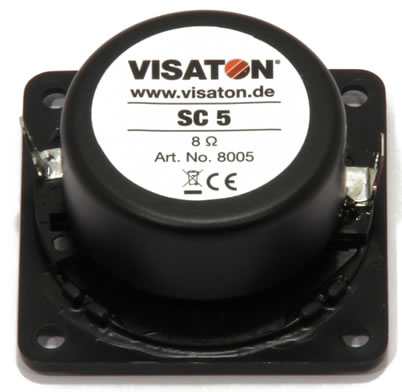

    Polycarbonate Dome Tweeter- rear view.
    Visaton SC5 - 8 Ohm Polycarbonate Dome Tweeter



    Characteristics and Sound Properties
    Magnetically shielded 13 mm (0.5") polycarbonate dome driver for the high-frequency range above 4000 Hz. Balanced frequency response, excellent omnidirectional sound distribution and high efficiency. Suitable for small sized shielded 2-way combinations for surround center speakers and multi media systems in conjunction with the shielded fullrange driver F 8 SC - 8 Ohm.



    Technical Specifications

    Nominal power handling with high pass 60 W
    (12 dB/Oct.; 6000 Hz)
    Peak power handling with high pass 100 W
    (12 dB/Oct.; 6000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response
    1500–22000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 107°/8000 Hz
    Resonance frequency fs 2000 Hz
    Magnetic induction 0.7 T
    Magnetic flux 33 µWb
    Height of front pole-plate 2 mm
    Voice coil diameter 13 mm
    Height of winding 2 mm
    Cutout diameter 48 mm
    Net weight 0.098 kg
    Connections 5.2 x 0.5 mm (+)
    2.8 x 0.5 mm (−)

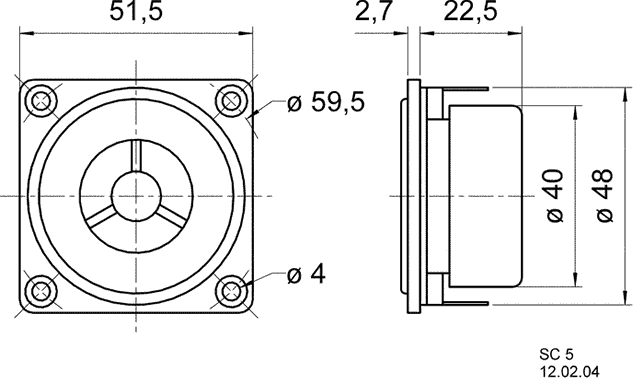

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

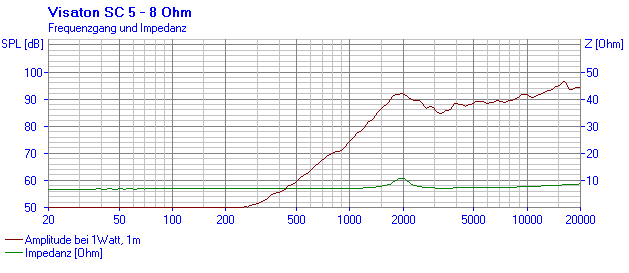

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

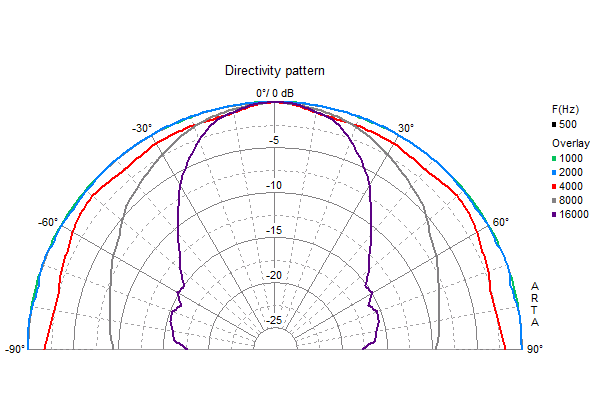

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
