SC 13 - 8 Ohm

Thumbnail Filmstrip of SC 13 - 8 Ohm Images

    Purchase SC 13 - 8 Ohm

    SKU: V-8013-SC13 SC 13 - 8 Ohm

    $65.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - SC 13 - 8 Ohm HiFi Fullrange Driver
    Art. No. 8013

    Visaton SC13 - 8 Ohm Hifi full range driver.
    Visaton SC13 - 8 Ohm Hifi Full Range Driver



    Characteristics and Sound Properties
    Magnetically shielded 13 cm (5") HiFi fullrange driver with cellulose cone and rubber surround. Can be used as a low-midrange driver too. Due to the very balanced frequency response especially suitable for magnetically shielded 2-way speakers for multi-media and surround systems in conjunction with the shielded tweeter SC 10 N - 8 Ohm.

    Typical applications:-
    - Surround centre speakers
    - Multimedia systems
    - Video monitoring screens
    - TVs
    - Computer terminals



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-13000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 58°/4000 Hz
    Excursion limit ± 7.5 mm
    Resonance frequency fs 78 Hz
    Magnetic induction 1 T
    Magnetic flux 250 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 5.5 mm
    Cutout diameter 113 mm
    Net weight 0.62 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 2.95
    Electrical Q factor Qes 0.94
    Total Q factor Qts 0.71
    Equivalent volume Vas 7.4 litres
    Effective piston area Sd 79 cm2
    Dynamically moved mass Mms 4.8 grams
    Force factor Bxl 4.2 Tm
    Inductance of the voice coil L 0.7 mH
    Temperature range −25 ... 70 °C
    Temperature Range



    Recommended Cabinet Sizes

    Volume / Principle fc / QTC
    10 litre / closed 103 Hz/0.94
    20 litre / closed 91 Hz/0.83
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)

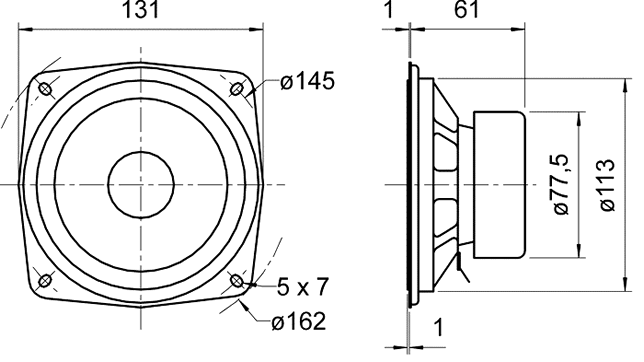

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

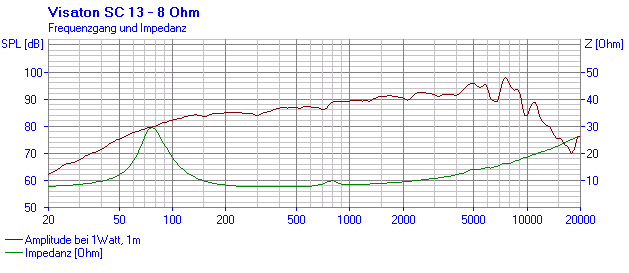

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

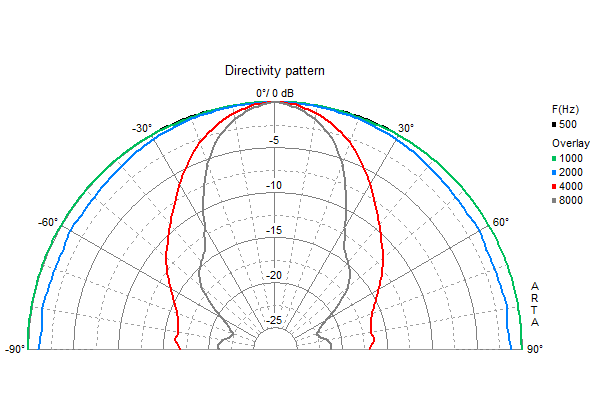

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
