W 130 S - 8 Ohm

Thumbnail Filmstrip of W 130 S - 8 Ohm Images

    Purchase W 130 S - 8 Ohm

    SKU: V-9023-W130S W 130 S - 8 Ohm

    $67.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - W 130 S - 8 Ohm HiFi Low-Midrange Driver
    Art. No. 9023

    Visaton W130S - 8 Ohm HiFi Low-Midrange Driver.
    Visaton W130S - 8 Ohm HiFi Low-Midrange Driver



    Characteristics and Sound Properties
    13 cm (5") HiFi low-midrange driver with coated paper cone, elastic rubber surround and 25 mm voice-coil. Suitable as woofer and due to the very balanced frequency response also as low-midrange driver especially in large 3-way speaker systems.



    Technical Specifications

    Rated power 50 W
    Maximum power 80 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-12000 Hz
    Mean sound pressure level 87 dB (1W/1m)
    Opening angle (-6 dB) 113°/4000 Hz
    Excursion limit ± 8 mm
    Resonance frequency fs 52 Hz
    Magnetic induction 0.9 T
    Magnetic flux 283 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Height of winding 8.5 mm
    Cutout diameter 109 mm
    Net weight 0.63 kg
    DC resistance Rdc 6 Ohm
    Mechanical Q factor Qms 2.26
    Electrical Q factor Qes 0.59
    Total Q factor Qts 0.47
    Equivalent volume Vas 12 litres
    Effective piston area Sd 74 cm2
    Dynamically moved mass Mms 6 grams
    Force factor Bxl 4.6 Tm
    Inductance of the voice coil L 0.6 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb fc / QTC
    7 litre / closed - - 86 Hz / 0.77
    20 litre / bass reflex BR 6.8 (length 4 cm) 44 Hz -
    30 litre / bass reflex BR 19.24 (length 12 cm) 39 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)

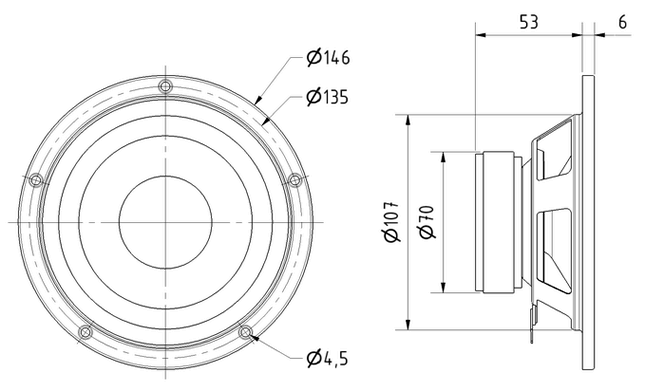

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

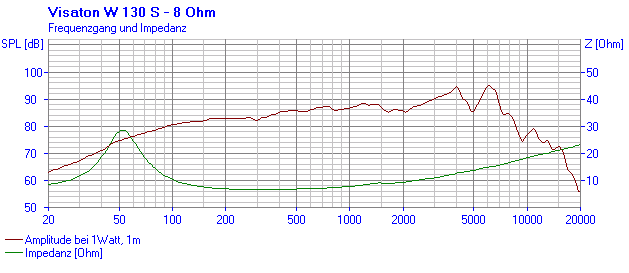

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

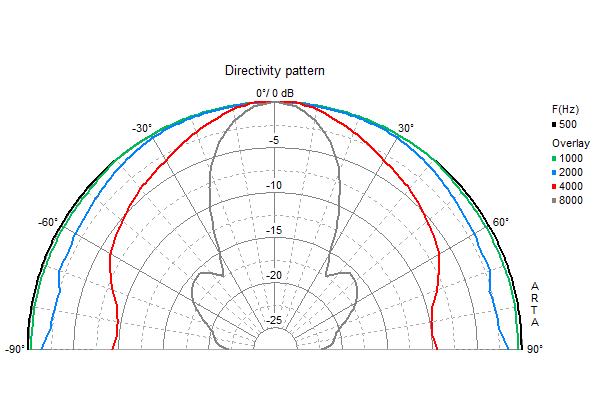

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
