3-Way Crossover 1600Hz 6kHz 16-6dB 8 Ohm

Thumbnail Filmstrip of 3-Way Crossover 1600Hz 6kHz 16-6dB 8 Ohm Images

    Purchase 3-Way Crossover 1600Hz 6kHz 16-6dB 8 Ohm

    SKU: V-5406-HW380NG-Crossover 3-Way Crossover 1600Hz 6kHz 16-6dB 8 Ohm

    $95.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton - Crossover HW3/80 NG 3-Way 8 Ohm
    Art. No. 5406

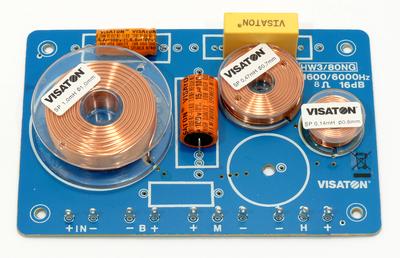

    Visaton Crossover HW3/80NG - 8 Ohm
    Visaton Crossover HW3/80NG - 8 Ohm



    Description
    Crossover made of high-grade copper coils and low-loss audio frequency electrolytic capacitors, mounted on epoxy PC boards. Checked with regard to function, slope steepness and cross-over frequency

    Technical Specifications

    Rated power 100 W
    Maximum power 160 W
    Nominal Impedence Z 8 Ohm
    Skirt selectivity / slope 16 dB / 6 dB / Oct.
    Crossover point 1600 / 6000 Hz
    Dimensions 100 x 150 mm



    Dimensions

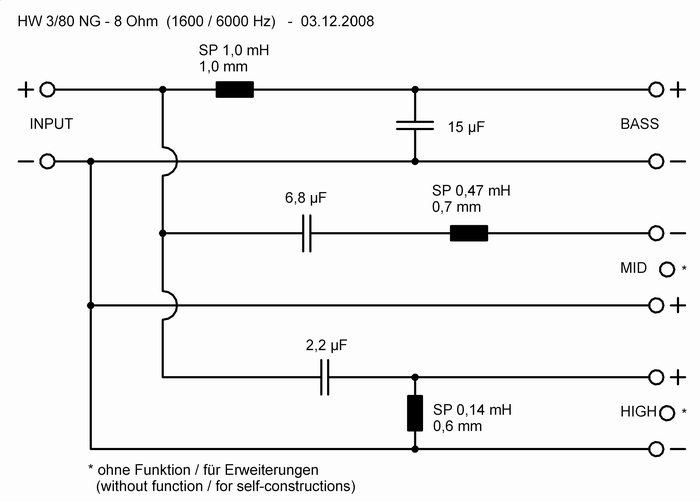

    Crossover Diagram
    Crossover circuit diagram.
