2-Way Crossover 3kHz 12dB 8 Ohm

Thumbnail Filmstrip of 2-Way Crossover 3kHz 12dB 8 Ohm Images

Purchase 2-Way Crossover 3kHz 12dB 8 Ohm

SKU: V-5402-HW270NG-Crossover 2-Way Crossover 3kHz 12dB 8 Ohm

Name: 2-Way Crossover 3kHz 12dB 8 Ohm
Brand: Visaton
SKU: V-5402-HW270NG-Crossover
Price: 70 AUD
Availability: OutOfStock

$70.00 each - on backorder

Brand: Visaton

Quantity in Basket: None

Sorry, we are currently sold out of:
2-Way Crossover 3kHz 12dB 8 Ohm.
More stock is due soon!

Qty

Description

Visaton - Crossover HW2/70NG 2-Way 8 Ohm
Art. No. 5402

Visaton Crossover HW2/70NG - 8 Ohm

Description
Crossover made of high-grade copper coils and low-loss audio frequency electrolytic capacitors, mounted on epoxy PC boards. Checked with regard to function, slope steepness and cross-over frequency.

Technical Specifications

Rated power	100 W
Maximum power	160 W
Nominal Impedence Z	8 Ohm
Skirt selectivity / slope	12 dB / Oct.
Crossover point	3000 Hz
Dimensions	100 x 150 mm

Circuit Diagram

Dimensions and Measurements - all dimensions in mm (approx.)

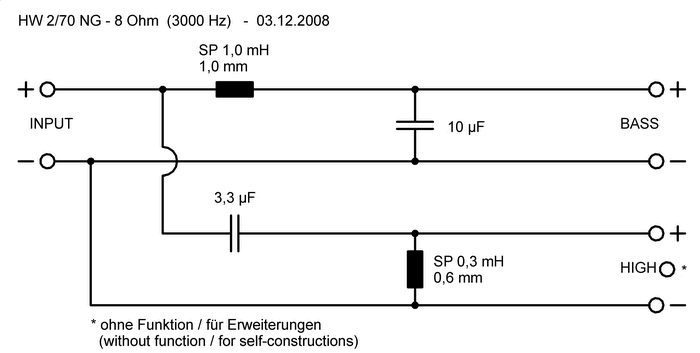

Crossover circuit diagram.
