2-Way Crossover 3kHz 12dB 4 Ohm

Thumbnail Filmstrip of 2-Way Crossover 3kHz 12dB 4 Ohm Images

    Purchase 2-Way Crossover 3kHz 12dB 4 Ohm

    SKU: V-5401-HW270NG-Crossover 2-Way Crossover 3kHz 12dB 4 Ohm

    $46.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton - Crossover HW2/70NG 2-Way 4 Ohm
    Art. No. 5401

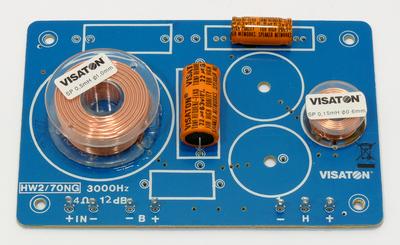

    Visaton Crossover HW2/70NG - 4 Ohm
    Visaton Crossover HW2/70NG - 4 Ohm



    Description
    Crossover made of high-grade copper coils and low-loss audio frequency electrolytic capacitors, mounted on epoxy PC boards. Checked with regard to function, slope steepness and cross-over frequency.

    Technical Specifications

    Rated power 100 W
    Maximum power 160 W
    Nominal Impedence Z 4 Ohm
    Skirt selectivity / slope 12 dB / Oct.
    Crossover point 3000 Hz
    Dimensions 100 x 150 mm

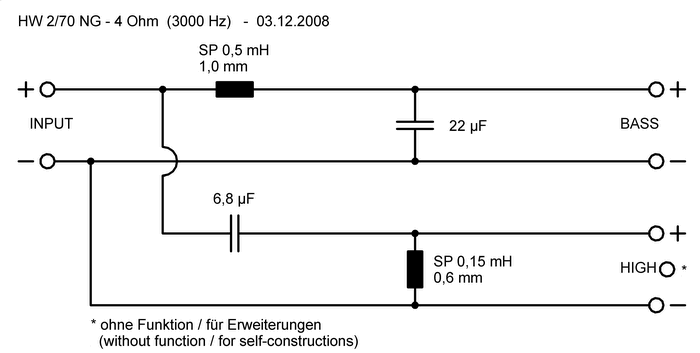

    Circuit Diagram

    Crossover circuit diagram.
    Crossover circuit diagram.
