KL 13 - 100V

Thumbnail Filmstrip of KL 13 - 100V Images

    Purchase KL 13 - 100V

    SKU: V-50331-KL13 KL 13 - 100V

    $237.00 each
    Brand: Visaton
    Shipping Weight: 2.23 kg
    Quantity in Basket:  None

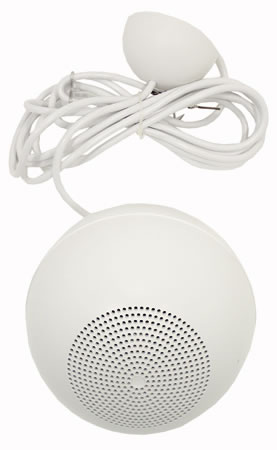

    Visaton Speaker Driver - KL 13 - 100V / 8 Ohm Spherical Loudspeaker
    Art. No. 50331

    KL13 - 100V / 8 Ohm Spherical Speaker
    Visaton KL13 - 100V / 8 Ohm Spherical Speaker



    Characteristics and Sound Properties
    Aesthetically appealing spherical loudspeaker with a 13 cm full-range speaker system. Very efficient system, good voice reproduction and a pleasing overall sound quality. Connection to 100 V and 70 V supplies and amplifier with 4 or 8 ohm outputs possible.

    Typical applications:-
    - Public address systems in rooms with high ceilings (shops, showrooms, supermarkets and exhibition or production halls)

    Attributes:-
    - Plastic: ABS (UL 94:HB)
    - Non halogen cable
    -100 V transformer



    Technical Specifications

    Rated power 25 W
    Maximum power 40 W
    Transformer matching 25; 12.5; 6.25 W / 8 Ohm
    Sound pressure level
    97 dB (1 W/1 m) @ 1513 Hz
    Frequency response 150–18000 Hz
    Mean sound pressure level 91dB (1W/1m)
    Max. sound pressure level 105 dB (25 W/1 m)
    Opening angle (-6 dB) 57°/4000 Hz
    Net weight 1.65 kg
    Length of cable 5 m
    Protective system IP 44
    Temperature Range −25 ... 70 °C
    Temperature Range

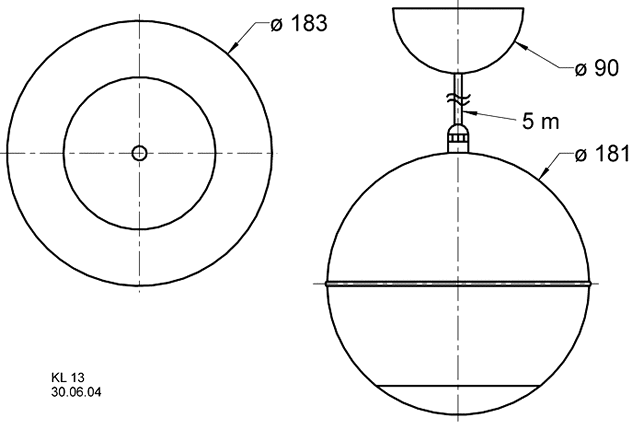

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

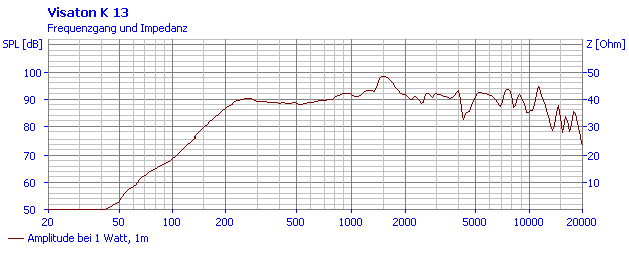

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

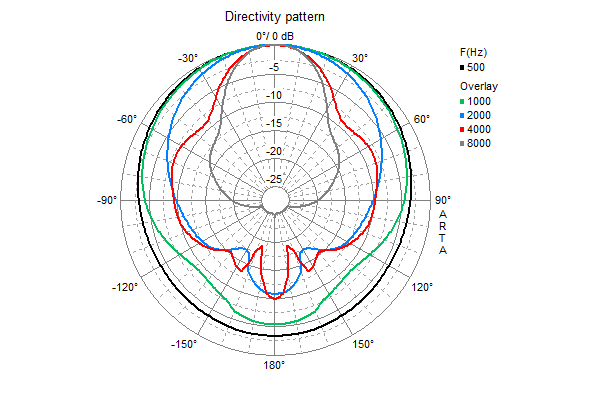

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
