KL 33 - 100V - 4 Ohm White

Thumbnail Filmstrip of KL 33 - 100V - 4 Ohm White Images

    Purchase KL 33 - 100V - 4 Ohm White

    SKU: V-50342-KL33 KL 33 - 100V - 4 Ohm White

    $495.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - KL 33 - 100 V / 4 Ohm White Spherical Loudspeaker
    Art. No. 50342

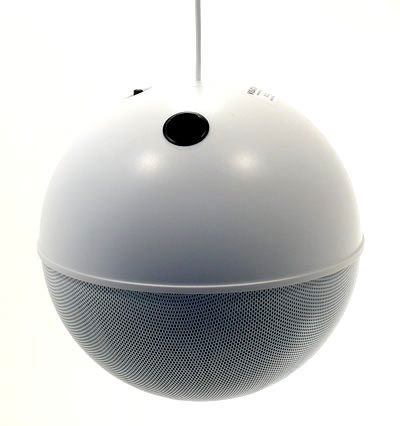

    KL33 - 100V / 4 Ohm Spherical Loudspeaker

    Visaton KL33 - 100V / 4 Ohm Spherical Speaker



    Characteristics and Sound Properties
    33 cm spherical loudspeaker as bass reflex system. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality. The KL 33 can be connected to a 100 V network or a normal amplifier (4 ohm).

    Typical applications:-
    - Public address systems in rooms with high ceilings (shops, showrooms, supermarkets and exhibition or production halls)

    Attributes:-
    - Plastic cabinet and metal grille
    - 100V transformer



    Technical Specifications

    Rated power 50 W
    Maximum power 70 W
    Transformer matching 12; 6; 3; 1.5 W / 4 Ohm
    Frequency response 70–18000 Hz
    Mean sound pressure level 86 dB (1 W/1 m)
    Opening angle (-6dB) 64°/4000 Hz
    Net weight 4.6 kg
    Length of cable 3 m
    Colour White

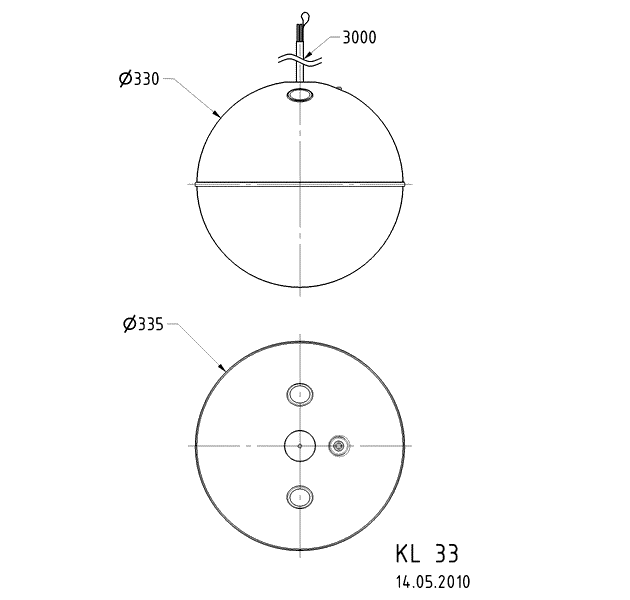

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

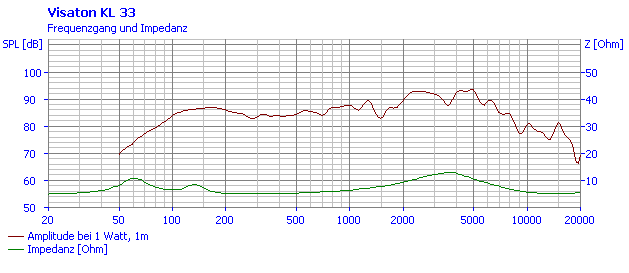

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

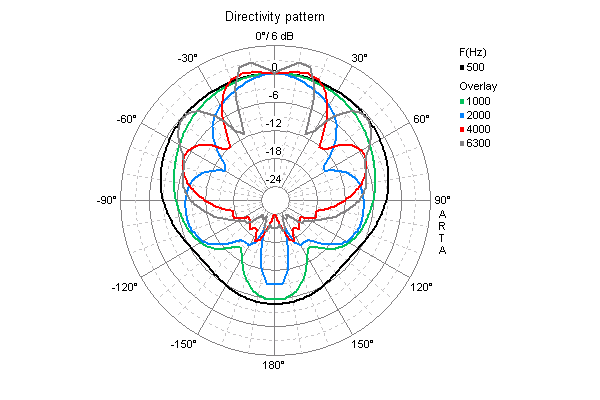

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
