    Visaton Speaker Driver - KL 33 MK 2 - 100V Spherical Loudspeaker
    Art. No. 50346

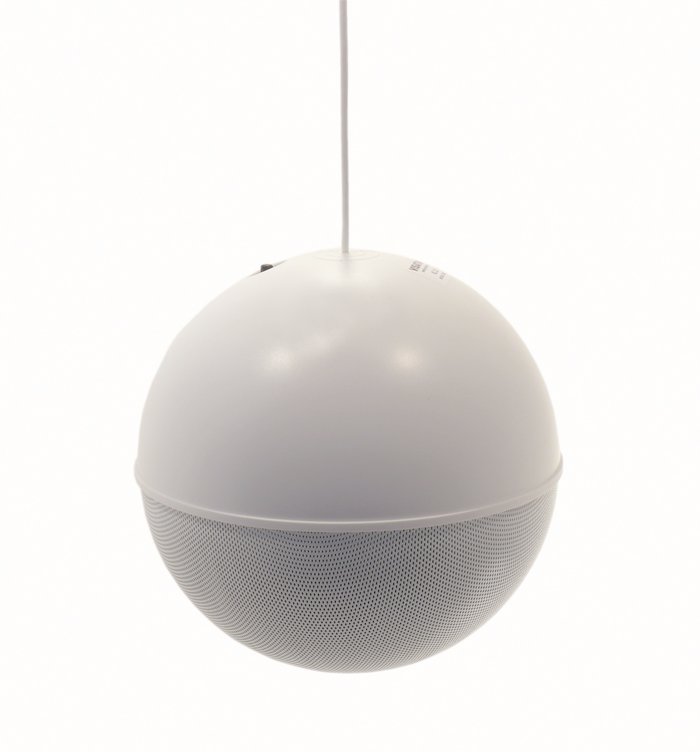

    Visaton  Spherical Loudspeaker KL 33 MK 2 - 100V
    Visaton KL 33 MK 2 - 100V



    Characteristics and Sound Properties
    33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles; and therefore provide a uniform and pleasant sound quality. The KL 33 MK 2 can be connected to a 100 V network or a normal amplifier (4 ohm).

    Typical applications:-
    -Voice alarm loudspeaker in rooms with high ceilings (shops, showrooms, supermarkets and exhibition or production halls)

    Attributes:-
    - Ceramic terminal with thermal fuse (compliant to British Standard BS 5839 part 8 and EN 60849)
    -Plastic cabinet and metal grille
    -100 V transformer



    Technical Specifications

    Rated power 50 W
    Maximum power 70 W
    Nominal impedance Z 4 Ohm
    Frequency response

    70-18000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Dispersion angle (-6 dB) 73°/4000 Hz
    Net weight 4.6 kg
    Transformer matching 12/6/3/1.5 W
    Max. sound pressure level 97 dB (12 W/1 m)
    Colour White
    Length of cable 3.0 m
    Protective system IP 44

    Temperature Range



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb fc / QTC
    5 litre / closed - - 81 Hz/0.72
    10 litre / bass reflex BR 6.8 48 Hz -
    20 litre / bass reflex BR 19.24 38 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)

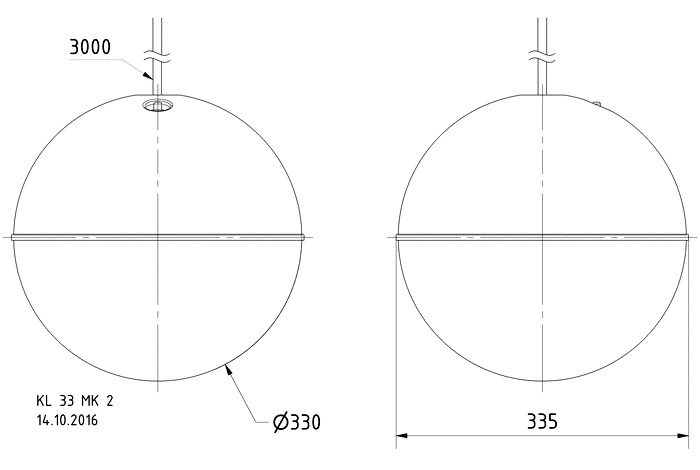

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

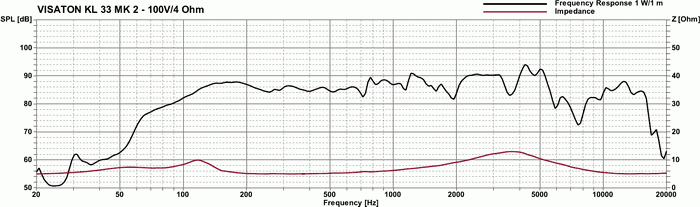

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

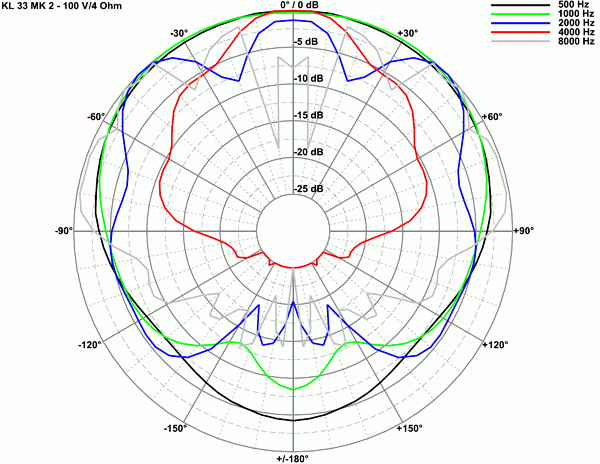

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
