WB 16 - 100V - 8 Ohm Black

Thumbnail Filmstrip of WB 16 - 100V - 8 Ohm Black Images

    Purchase WB 16 - 100V - 8 Ohm Black

    SKU: V-50318-WB16 WB 16 - 100V - 8 Ohm Black

    $286.00 each
    Brand: Visaton
    Shipping Weight: 4.20 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - WB 16 - 100 V / 8 Ohm 2-Way Compact Speaker Black
    Art. No. 50318

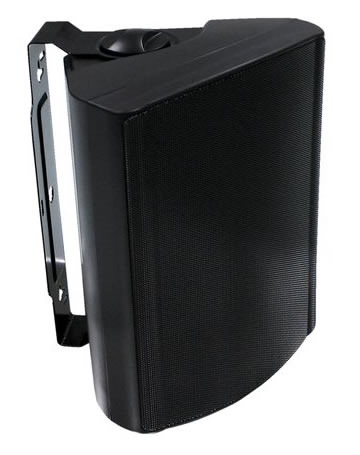

    Visaton WB16 - 100V / 8 Ohm Black compact speaker.


    Visaton WB16 - 100V / 8 Ohm Black 2-way Compact Speaker



    Characteristics and Sound Properties
    2-way compact speakers in a sturdy plastic housing (black), fitted with one 16 cm woofer and one tweeter providing broad frequency response.

    Well suited for music and voices. Universally applicable to professional PA or in the home. Can be run as a 100 V system or as 8 ohm units due to an integrated transformer. 100 V transformer and 8 ohm mode are selected using a knob.
    Swivelling fixing bracket allows the speakers to be mounted horizontally or vertically, as required, and the housing is equipped with a threaded hole for attaching to a bracket or swivelling arm.

    Typical applications:-
    - Conference facilities
    - Multimedia
    - Outdoor use

    Attributes:-
    - UV-resistant
    - 100 V transformer
    - Weather-proof plastic cabinet
    - Plastic: ABS (UL 94:HB)



    Technical Specifications

    Rated power 60 W
    Maximum power 90 W
    Transformer matching 25; 15; 7.5; 4; 2 W / 8 Ohm
    Sound pressure level 92 dB (1 W/1 m) @ 16223 Hz
    Frequency response 80-20000 Hz
    Mean sound pressure level 89 dB (1 W/1 m)
    Max. sound pressure level 103 dB (25 W/1 m)
    Opening angle (-6dB) 52°/4000 Hz
    97°/4000 Hz
    Net weight 2.8 kg
    Protective System IP 54
    Temperature range −25 ... 70 °C
    Colour Black
    Temperature RangeIP 54 Protection rating WB 16 Speaker





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

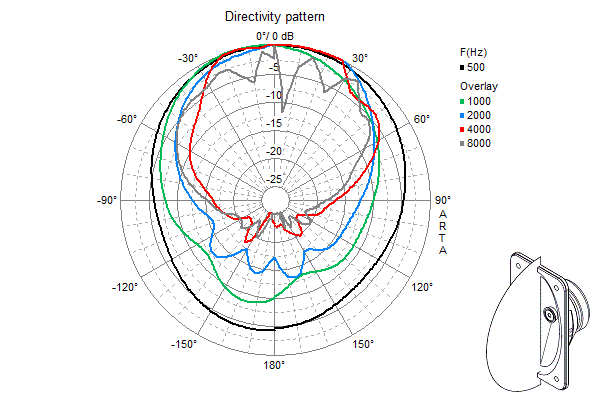

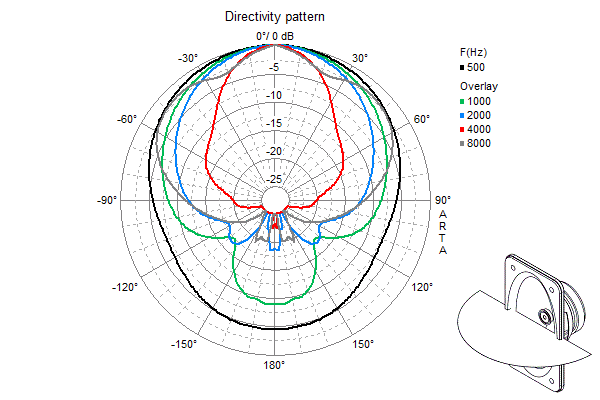

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)



    WB 16 Directivity Pattern 100V / 8 Ohm Speaker
    Loudspeaker Directivity Pattern (on and off axis response)
