WB 10 - 100V - 8 Ohm Black

Thumbnail Filmstrip of WB 10 - 100V - 8 Ohm Black Images

    Purchase WB 10 - 100V - 8 Ohm Black

    SKU: V-50312-WB10 WB 10 - 100V - 8 Ohm Black

    $182.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WB 10 - 100V / 8 Ohm Compact Speaker Black
    Art. No. 50312

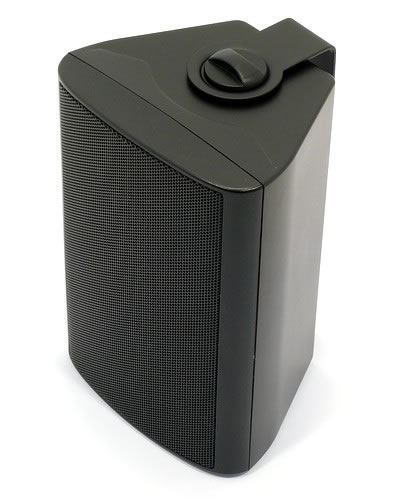

    Visaton WB10 - 100V / 8 Ohm 2-Way Compact Speaker Black.

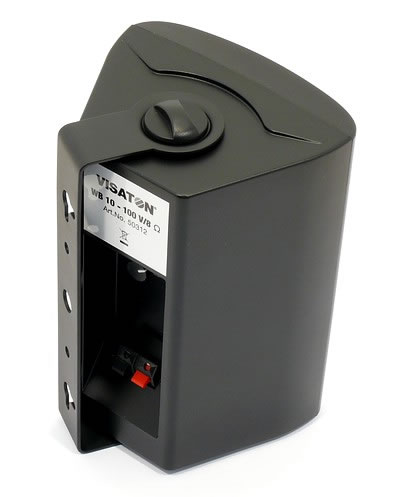

    Visaton WB10 - 100V / 8 Ohm 2-Way Compact Speaker Black - rear view.
    Visaton WB10 - 100V / 8 Ohm 2-Way Compact Speaker Black.



    Characteristics and Sound Properties
    2-way compact speakers in a sturdy plastic housing (black), fitted with one 10 cm woofer and one tweeter providing broad frequency response. Well suited for music and voices. Universally applicable to professional PA or in the home.

    Can be run as a 100 V system or as 8 ohm units due to an integrated transformer. 100 V transformer and 8 ohm mode are selected using a knob. Swivelling fixing bracket allows the speakers to be mounted horizontally or vertically, as required.

    Typical applications:-
    - Conference facilities
    - Multimedia

    Attributes:-
    - 100 V transformer
    - Plastic cabinet



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Transformer matching 15; 7.5; 4; 2 W / 8 Ohm
    Sound pressure level
    91 dB (1 W/1 m) @ 8200 Hz
    Frequency response 100–20000 Hz
    Mean sound pressure level 85 dB (1 W/1 m)
    Max. sound pressure level 96 dB (15 W/1 m)
    Opening angle (-6dB) 111°/4000 Hz hor.
    44°/4000 Hz vert.
    Net weight 1.325 kg
    Protective system IP 54
    Temperature range −25 ... 70 °C
    Colour Black
    Temperature RangeProtection rating WB10





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    Directivity Pattern WB 10 Speaker
    Loudspeaker Directivity Pattern (on and off axis response)
