WB 13 - 100V - 8 Ohm Black

Thumbnail Filmstrip of WB 13 - 100V - 8 Ohm Black Images

    Purchase WB 13 - 100V - 8 Ohm Black

    SKU: V-50313-WB13 WB 13 - 100V - 8 Ohm Black

    $212.00 each
    Brand: Visaton
    Shipping Weight: 3.01 kg
    Quantity in Basket:  None

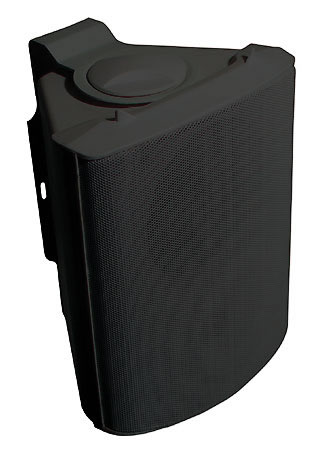

    Visaton Speaker Driver - WB 13 - 100V / 8 Ohm 2-Way Compact Speaker Black
    Art. No. 50313

    Visaton WB13 - 100V / 8 Ohm 2 Way Black Speaker.
    Visaton WB13 - 100V / 8 Ohm 2-Way Compact Speaker Black.



    Characteristics and Sound Properties
    2-way compact speakers in a sturdy plastic housing (black), fitted with one 13 cm woofer and one tweeter providing broad frequency response. Well suited for music and voices. Universally applicable to professional PA or in the home.

    Can be run as a 100 V system or as 8 ohm units due to an integrated transformer. 100 V transformer and 8 ohm mode are selected using a knob. Swivelling fixing bracket allows the speakers to be mounted horizontally or vertically, as required, and the housing is equipped with a threaded hole for attaching to a bracket or swivelling arm.

    Typical applications:-
    - Conference facilities
    - Multimedia
    - Outdoor use

    Attributes:-
    - UV-resistant
    - 100 V transformer
    - Weather-proof plastic cabinet
    - Plastic: ABS (UL 94:HB)



    Technical Specifications

    Rated power 50 W
    Maximum power 80 W
    Transformer matching 25; 15; 7.5; 4; 2 W / 8 Ohm
    Sound pressure level
    91 dB (1 W/1 m) @ 6108 Hz
    Frequency response 95–20000 Hz
    Mean sound pressure level 88 dB (1 W/1 m)
    Max sound pressure level 102 dB (25 W/1 m)
    Opening angle (-6 dB) 89°/4000 Hz hor.
    77°/4000 Hz vert.
    Net Weight

    2.4 kg

    Protective system IP 54
    Colour Black
    IP 54 Protective rating WB13 8 Ohm / 100 V

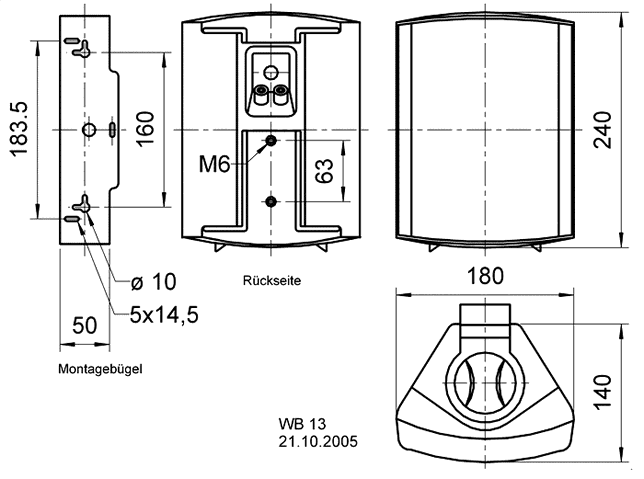

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

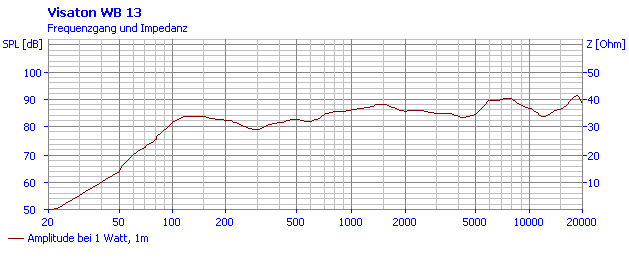

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

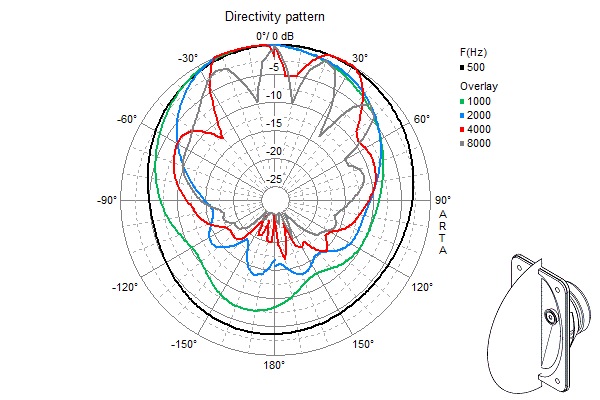

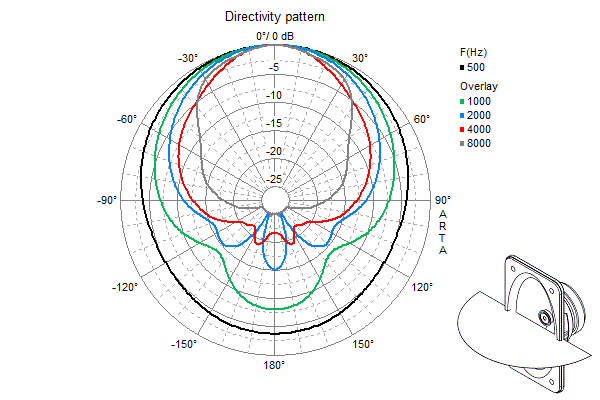

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    WB 13 8 Ohm/100V directivity pattern
    Loudspeaker Directivity Pattern (on and off axis response)
