K 50 FLS - 8 Ohm

Thumbnail Filmstrip of K 50 FLS - 8 Ohm Images

    Purchase K 50 FLS - 8 Ohm

    SKU: V-2955-K50FLS K 50 FLS - 8 Ohm

    $13.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - K 50 FLS - 8 Ohm Miniature Speaker
    Art. No. 2955

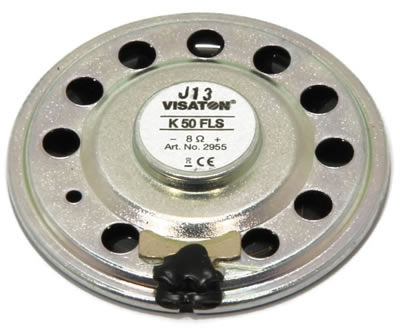

    Visaton K50FLS Small Speaker 8 Ohm.
    K50FLS Rear View 8 Ohm Miniature Speaker
    Visaton K50FLS - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    5 cm (2") miniature speaker with plastic diaphragm (Mylar). Very compact design. Good speech reproduction. Differences to K 50 FL - 8 Ohm: - Higher resonance frequency - Higher mean sound pressure level - Adjusted frequency response.
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-

    - Signal output in machines and other equipment where space is at a premium
    - Well suited to outdoor applications and where ambient conditions are generally unfavourable



    Technical Specifications

    Rated power 1 W
    Maximum power 2 W
    Nominal impedance Z 8 Ohm
    Frequency response 350–20000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Resonance frequency fs 570 Hz
    Voice coil diameter 13 mm
    Height of winding 2 mm
    Cutout diameter 46 mm
    Net weight 0.014 kg
    Protectiv System IP 65 *)
    Temperature Range −40 ... 70 °C

    Temperature RangeK50 FLS - 8 Ohm Protective system rating

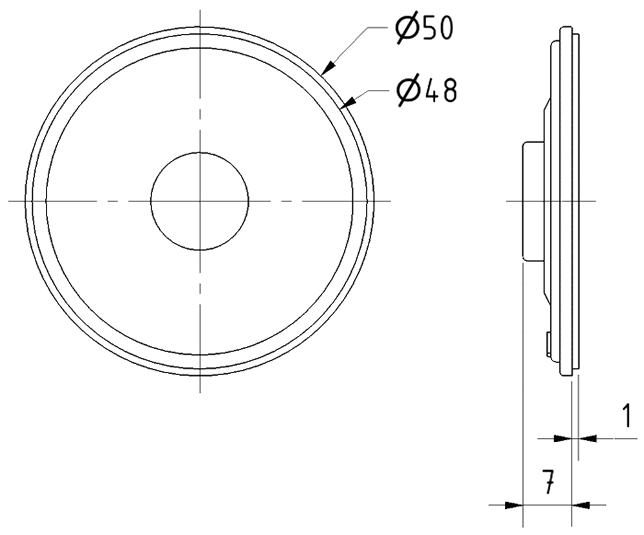

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

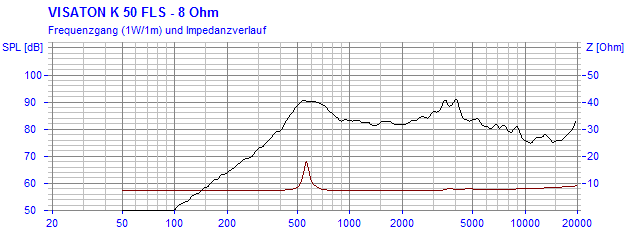

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
