K 50 SQ - 8 Ohm

Thumbnail Filmstrip of K 50 SQ - 8 Ohm Images

    Purchase K 50 SQ - 8 Ohm

    SKU: V-2897-K50SQ K 50 SQ - 8 Ohm

    $14.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 50 SQ - 8 Ohm Miniature Loudspeaker
    Art. No. 2897

    Visaton K50SQ - 8 Ohm Miniature speaker.
    Visaton K50SQ - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    5 cm (2") miniature speaker with plastic diaphragm, square metal basket with 4 mounting holes and foam gasket. 2.8 x 0.5 mm contact pin. Thanks to its compact dimensions, suitable for signal output in machines and other equipment where space is at a premium.

    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Voice and signal output in machines and other equipment both indoors and outdoors

    Attributes:-
    - Metal basket
    - Plastic membrane (mylar)
    - Functionally at cold according to EN 60068-2-1/EN 50155



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 8 Ohm
    Frequency response
    250–10000 Hz
    Mean sound pressure level 83 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ±1 mm
    Resonance frequency fs 480 Hz
    Height of front pole-plate 2 mm
    Voice coil diameter 14 mm
    Height of winding 3 mm
    Cutout diameter 45 mm
    Net weight 0.05 kg
    DC resistance Rdc 7.3 Ohm
    Mechanical Q factor Qms 6.42
    Electrical Q factor Qes 7.32
    Total Q factor Qts 3.42
    Equivalent volume Vas 0.06 litres
    Effective piston area Sd 12.5 cm2
    Dynamically moved mass Mms 0.4 grams
    Force factor Bxl 1.12 Tm
    Connections 2.8 x 0.5 mm (+)
    2.8 x 0.5 mm (−)
    Protective System IP 65 / 67 *)
    Temperature range −40 ... 80 °C
    Temperature RangeIP65 Protrection SystemProtective System IP67

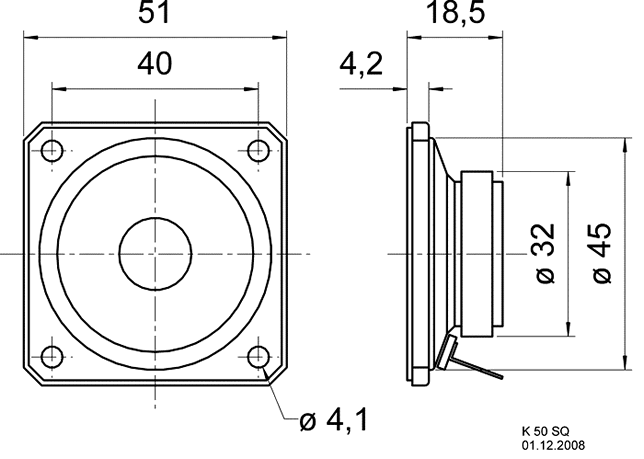

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

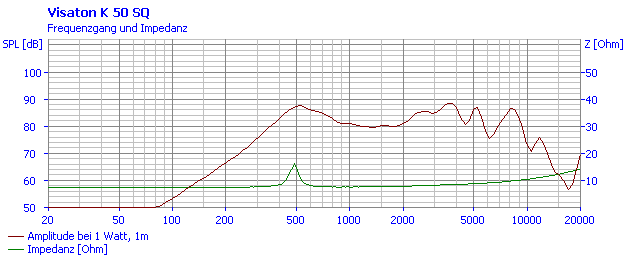

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

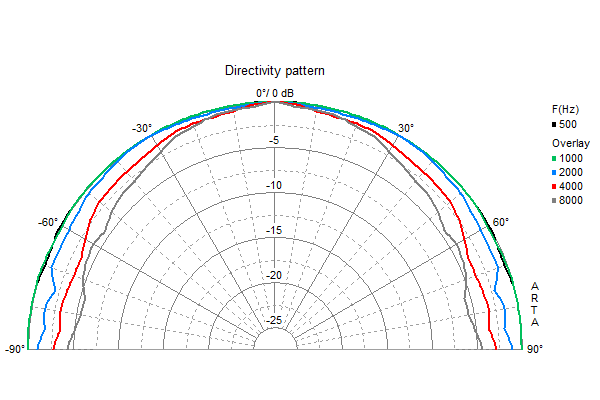

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
