K 50 WPT - 8 Ohm

Thumbnail Filmstrip of K 50 WPT - 8 Ohm Images

    Purchase K 50 WPT - 8 Ohm

    SKU: V-2930-K50WPT K 50 WPT - 8 Ohm

    $13.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - K 50 WPT - 8 Ohm Miniature Speaker
    Art. No. 2930

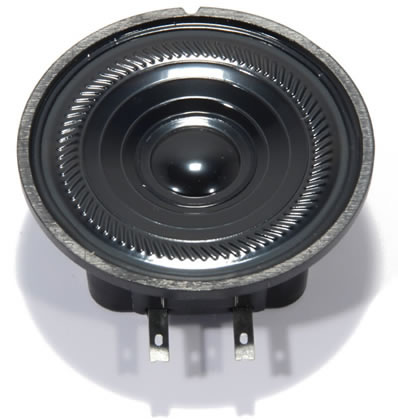

    Visaton K50WPT - 8 Ohm miniature speaker.

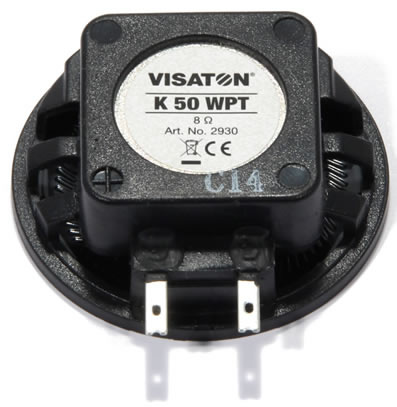

    Visaton K50WPT - 8 Ohm miniature speaker - rear view.
    Visaton K50WPT - 8 Ohm 5cm (2") Minature Speaker



    Characteristics and Sound Properties
    5 cm (2") miniature speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction.

    Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).
    - Version with different orientation of the terminals: see K 50 WP - 8 Ohm
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Monitoring speaker for electronic devices
    - Monitoring speaker for outdoor systems

    Attributes:-
    - Plastic: ABS (basket; UL 94: HB); Mylar (diaphragm)
    - Functionally at cold according to EN 60068-2-1/EN 50155
    - Weather-resistant
    - UV-resistant



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 8 Ohm
    Frequency response
    180-17000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ±1 mm
    Resonance frequency fs 300 Hz
    Height of front pole-plate 2 mm
    Voice coil diameter 10 mm
    Height of winding 2.5 mm
    Cutout diameter 46 mm
    Net weight 0.048 kg
    Protective System IP 65 *)
    Temperature range −40 ... 80 °C

    Temperature RangeIP 65 Protection

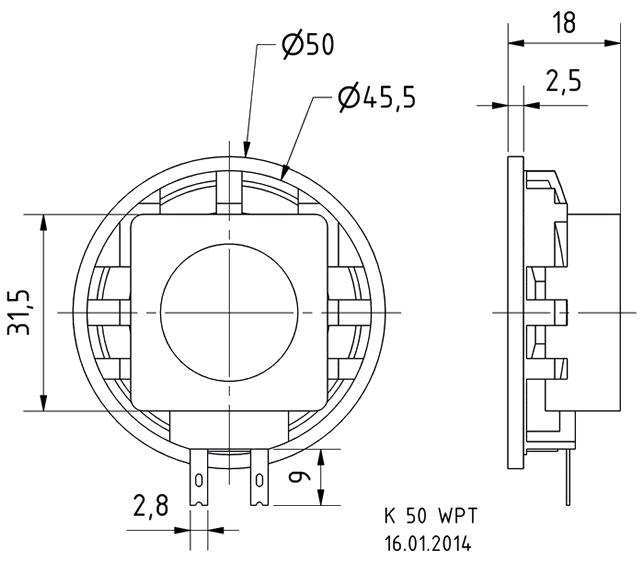

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

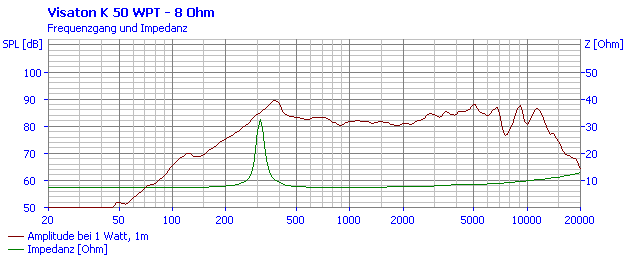

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

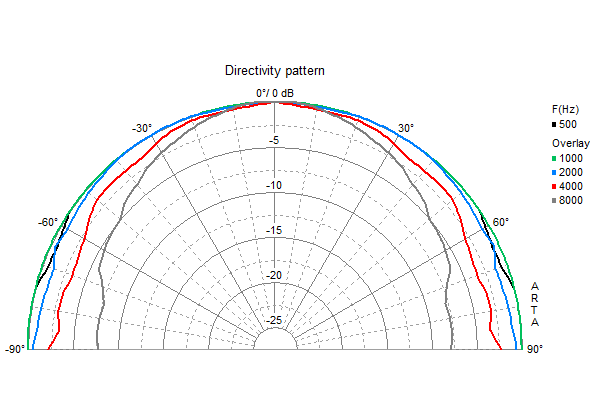

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
