FR 10 WPX White - 4 Ohm'

Thumbnail Filmstrip of FR 10 WPX White - 4 Ohm' Images

    Purchase FR 10 WPX White - 4 Ohm'

    SKU: V-2150-FR10WPX FR 10 WPX White - 4 Ohm'

    $62.00 each
    Brand: Visaton
    Quantity in Basket:  None



    4 available.

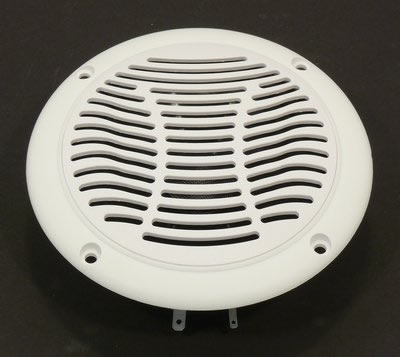

    Visaton Speaker Driver - FR 10 WPX - 4 Ohm Saltwater Resistant - White
    Art. No. 2150

    Visaton FR10WPX - 4 Ohm Saltwater resistant - white.
    Visaton FR10WPX - 4 Ohm Saltwater Resistant - white.



    Characteristics and Sound Properties
    Saltwater resistant 10 cm (4") full-range driver with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Black colour. *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Loudspeaker for saunas
    - Outdoor PA systems
    - Loudspeaker for solariums and damp locations
    - Boats, ships and open vehicles

    Attributes:-
    - Temperature resistant up to 120 °C
    - Suitable for outdoor applications
    - Seawater proof
    - Ball-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response
    80–16000 Hz
    Mean sound pressure level 83 dB (1W/1m)
    Opening angle (-6 dB) 83°/4000 Hz
    Resonance frequency fs 120 Hz
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 101 mm
    Net weight 0.275 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective System IP 65*)
    Colour White
    Temperature range −40 ... 120 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
