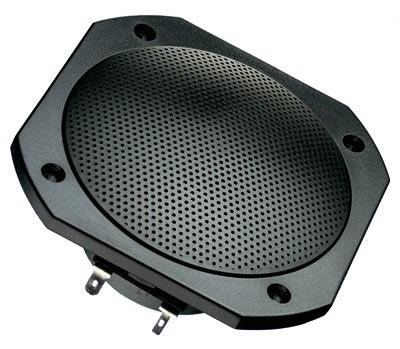

SKU: V-2100-FRS10WP FRS 10 WP Black - 4 Ohm

Visaton Speaker Driver - FRS 10 WP - 4 Ohm Black Saltwater Resistant Full Range
Art. No. 2100

Characteristics and Sound Properties
Saltwater resistant 10 cm (4") full-range driver with glass fibre cone, plastic basket and grille. Balanced frequency response, high efficiency and good high-midrange reproduction. Long term weather proved and therefore especially suited for outdoor sound reinforcement systems, swimming pools, sauna and speaker for boats, ships and open vehicles. Also suitable for model boat applications.

Typical applications:-
- Outdoor PA systems
- Speaker systems for saunas
- Weatherproof network column speakers
- Boats, ships and open vehicles

Attributes:-
- suitable for outdoor applications, seawater proof
- functional at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
- Plastic: PC (UL 94: V-0)
- temperature resistance 120 °C
- ball-resistant

Technical Specifications

Rated power	25 W
Maximum power	50 W
Nominal impedance Z	4 Ohm
Frequency response	90-19000 Hz
Mean sound pressure level	90 dB (1W/1m)
Opening angle (-6 dB)	64°/4000 Hz
Excursion limit	± 3 mm
Resonance frequency fs	190 Hz
Magnetic induction	1.0 T
Magnetic flux	190 uWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	5 mm
Cutout diameter	92 mm
Net weight	0.36 kg
DC resistance Rdc	3.4 Ohm
Mechanical Q factor Qms	8.29
Electrical Q factor Qes	1.02
Total Q factor Qts	0.91
Equivalent volume Vas	2 litres
Effective piston area Sd	57 cm2
Dynamically moved mass Mms	2.4 grams
Force factor Bxl	3.8 Tm
Inductance of the voice coil L	0.2 mH
Connections	4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-)
Protective system	IP 65 *)
Temperature range	-40... 120 °C
Colour	Black

*) IP protection class for front side when built into a sealed enclosure.
