FRS 10 WP White - 8 Ohm

Thumbnail Filmstrip of FRS 10 WP White - 8 Ohm Images

    Purchase FRS 10 WP White - 8 Ohm

    SKU: V-2103-FRS10WP FRS 10 WP White - 8 Ohm

    $99.00 each
    Brand: Visaton
    Shipping Weight: 0.75 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - FRS 10 WP - 8 Ohm White Saltwater Resistant Full Range
    Art. No. 2103

    Visaton FRS10WP -  8 Ohm Saltwater Resistant Full Range Speaker White.
    Visaton FRS10WP - 8 Ohm Saltwater Resistant - White



    Characteristics and Sound Properties
    Saltwater resistant 10 cm (4") full-range driver with glass fibre cone, plastic basket and grille. Balanced frequency response, high efficiency and good high-midrange reproduction. Long time weather proved and therefore especially suited for outdoor sound reinforcement systems, swimming pools, sauna and speaker for boats, ships and open vehicles. Also suitable for model boat applications. *) IP protection class for front side when built into a sealed enclosure.

    Typical applications:-
    - Outdoor sound reinforcement systems
    - Speaker systems for saunas
    - Weatherproof network column speakers
    - Boats, ships and open vehicles

    Attributes:-
    - suitable for outdoor applications, seawater proof
    - functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    - Plastic: PC (UL 94: V-0)
    - temperature resistance 120 °C
    - ball-resistant



    Technical Specifications

    Rated power 25 W
    Maximum power 50 W
    Nominal impedance Z 8 Ohm
    Frequency response
    90–19000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 64°/4000 Hz
    Excursion limit ± 3 mm
    Resonance frequency fs 190 Hz
    Magnetic induction 1.0 T
    Magnetic flux 190 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 92 mm
    Net weight 0.36 kg
    DC resistance Rdc 6.4 Ohm
    Mechanical Q factor Qms 7.6
    Electrical Q factor Qes 1.12
    Total Q factor Qts 0.98
    Equivalent volume Vas 1.9 litres
    Effective piston area Sd 57 cm2
    Dynamically moved mass Mms 3 grams
    Force factor Bxl 4.3 Tm
    Inductance of the voice coil L 0.4 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective system IP 65 *)
    Temperature range -40... 120 °C
    Colour White

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

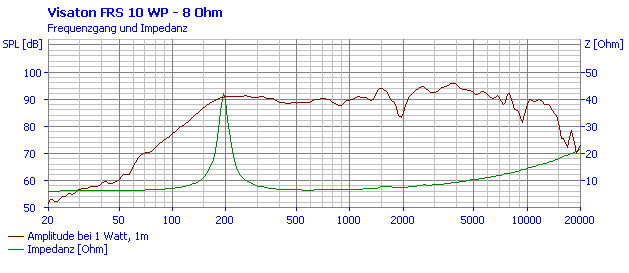

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
