SL 87 ND - 8 Ohm

Thumbnail Filmstrip of SL 87 ND - 8 Ohm Images

    Purchase SL 87 ND - 8 Ohm

    SKU: V-2086-SL87ND SL 87 ND - 8 Ohm

    $77.00 each
    Brand: Visaton
    Quantity in Basket:  None

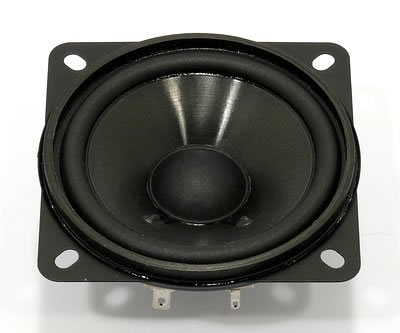

    Visaton Speaker Driver - SL 87 ND - 8 Ohm Full Range Speaker
    Art. No. 2086

    Visaton S 87ND - 8 Ohm Fullrange Speaker.
    Visaton SL87ND - 8 Ohm Full Range Speaker



    Characteristics and Sound Properties
    8.5 cm (3.4") full-range speaker with plastic cone and rubber surround. Low weight due to neodymium magnet. Very high efficiency and well-balanced frequency response.
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Column speakers
    - Small hi-fi systems



    Technical Specifications

    Rated power 10 W
    Maximum power 15 W
    Nominal impedance Z 8 Ohm
    Frequency response 88−20000 Hz
    Mean sound pressure level 88 dB (1W/1m)
    Opening angle (-6 dB) 132°/4000 Hz
    Resonance frequency fs 120 Hz
    Voice coil diameter 20 mm
    Cutout diameter 80 mm
    Net weight 0.11 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective system IP 64 *)
    Temperature range −40 ... 80 °C
    Temperature RangeProtective System IP 64





    Driver Dimensions

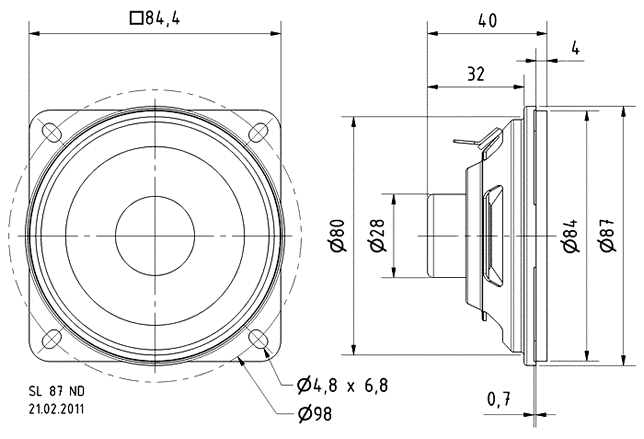

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

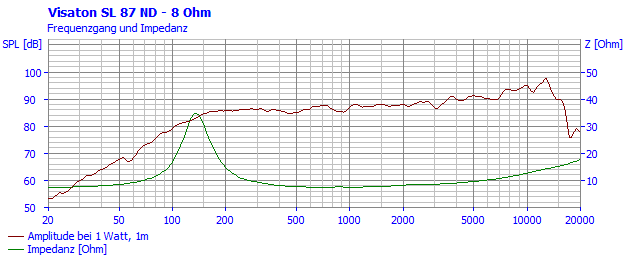

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

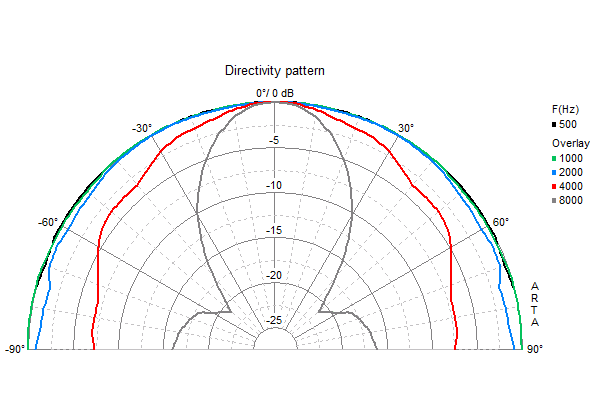

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
