SL 87 WPM - 8 Ohm

Thumbnail Filmstrip of SL 87 WPM - 8 Ohm Images

    Purchase SL 87 WPM - 8 Ohm

    SKU: V-2088-SL87WPM SL 87 WPM - 8 Ohm

    $21.00 each
    Quantity in Basket:  None

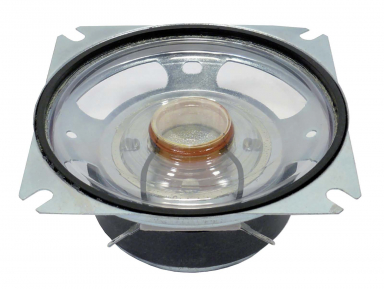

    Visaton Speaker Driver - SL 87 WPM - 8 Ohm Waterproof Fullrange Speaker
    Art. No. 2088

    Visaton SL 87 WPM - 8 Ohm Waterproof Full Range Speaker.
    Visaton SL87WPM - 8 Ohm Waterproof Full Range Speaker.



    Characteristics and Sound Properties
    Waterproof 8 cm (3.3") fullrange speaker with a transparent plastic cone and rubber sealing ring. High mean sound pressure level and compact design. Optimised for voice and signal output.
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-

    - Control speaker for electronic devices
    - Outdoor sound reinforcement systems

    Attributes:-
    - UV-resistant
    - Weather-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Frequency response
    200–5000 Hz
    Mean sound pressure level 89 dB (1W/1m)
    Opening angle (-6 dB) 142°/4000 Hz
    Excursion limit ± 1.5 mm
    Resonance frequency fs 290 Hz
    Magnetic induction 0.87 T
    Magnetic flux 165 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 80 mm
    Net weight 0.24 kg
    Connections 2x 2.8 x 0.5 mm
    Protective system IP 65 *)
    Temperature range −40 ... 70 °C
    Temperature RangeIP 65 Protective System





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

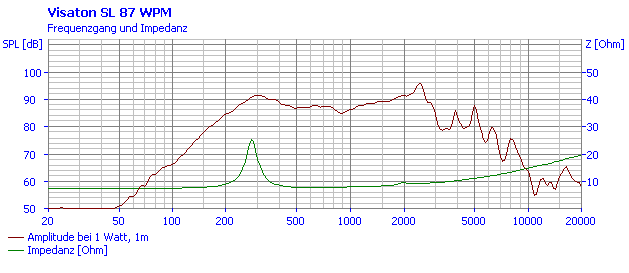

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
