FRS 7 W - 8 Ohm

Thumbnail Filmstrip of FRS 7 W - 8 Ohm Images

    Purchase FRS 7 W - 8 Ohm

    SKU: V-2017-FRS7W FRS 7 W - 8 Ohm

    $25.00 each
    Brand: Visaton
    Quantity in Basket:  None

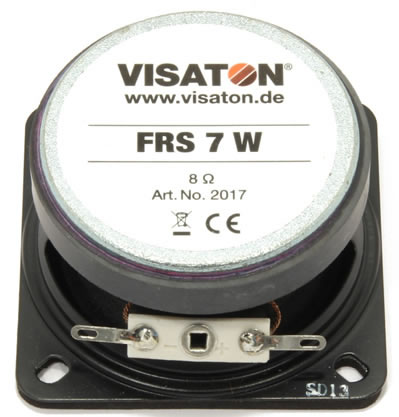

    Visaton Speaker Driver - FRS 7 W - 8 Ohm Full Range
    Art. No. 2017

    Visaton FRS7W - 8 Ohm Full Range
    Visaton FRS7W - 8 Ohm Full Range.

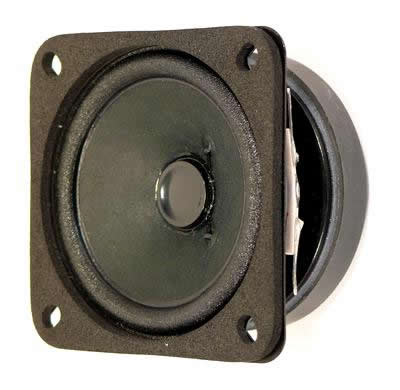

    Visaton FRS7W - 8 Ohm Full Range Speaker



    Characteristics and Sound Properties
    6.5 cm (2.5") full-range speaker with balanced frequency response and very good highs. Especially suitable as built-in speaker for music reproduction and as driver for 100V network column speakers. Very low resonance frequency and maximum cone displacement.

    Typical applications:-
    - Narrow network column speakers
    - Control speaker for electronic device
    - Model construction
    - Electronic musical instruments

    Attributes:-

    - Metal basket
    - 100 °C temperature resistant



    Technical Specifications

    Rated power 8 W
    Maximum power 15 W
    Nominal impedance Z 8 Ohm
    Frequency response 120–20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ±2.5 mm
    Resonance frequency fs 160 Hz
    Magnetic induction 1.1 T
    Magnetic flux 120 µWb
    Height of front pole-plate 2.5 mm
    Voice coil diameter 14 mm
    Height of winding 4.5 mm
    Cutout diameter 61 mm
    Net weight 0.22 kg
    DC resistance Rdc 6.6 Ohm
    Mechanical Q factor Qms 2.08
    Electrical Q factor Qes 0.91
    Total Q factor Qts 0.63
    Equivalent volume Vas 0.78 litres
    Effective piston area Sd 22 cm2
    Dynamically moved mass Mms 0.9 grams
    Force factor Bxl 2.5 Tm
    Temperature range -25 ... 100 °C





    Driver Dimensions

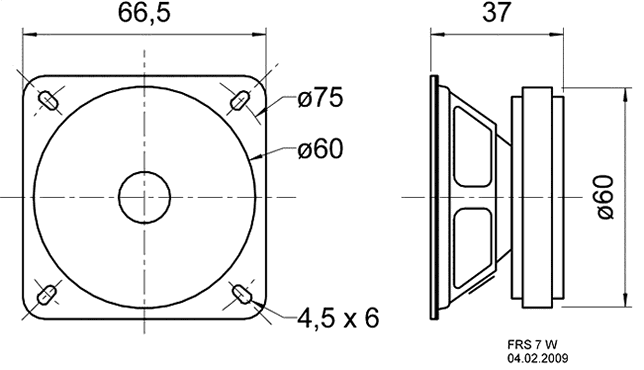

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

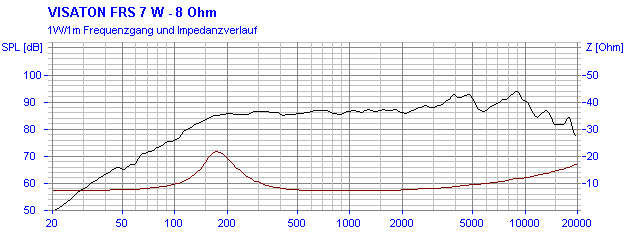

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

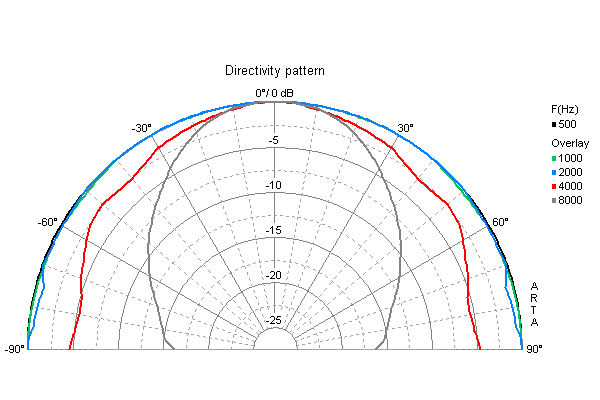

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
