FRS 7 - 4 Ohm

Thumbnail Filmstrip of FRS 7 - 4 Ohm Images

    Purchase FRS 7 - 4 Ohm

    SKU: V-2011-FRS7 FRS 7 - 4 Ohm

    $28.00 each
    Brand: Visaton
    Quantity in Basket:  None

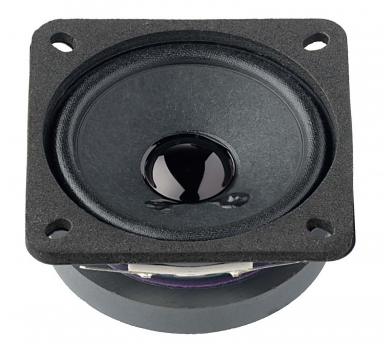

    Visaton Speaker Driver - FRS 7 - 4 Ohm Full Range
    Art. No. 2011

    6.5 cm (2.5") fullrange speaker with balanced frequency response and very good highs. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers. Outstandingly high efficiency compared to the small size.

    Typical applications:-
    - Narrow network column speakers
    - Monitoring speaker for electronic devices
    - Model construction
    - Electronic musical instruments

    Attributes:-

    - Water proof cone
    - Metal basket
    - 100 °C temperature resistant



    Technical Specifications

    Rated power 8 W
    Maximum power 15 W
    Nominal impedance Z 4 Ohm

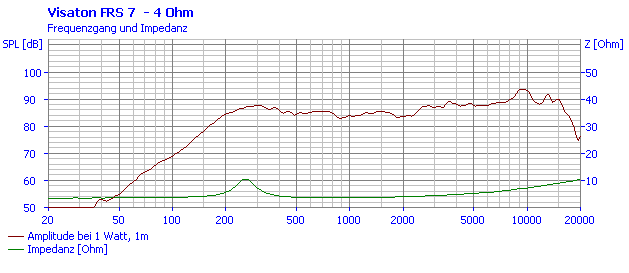

    Frequency response 200–20000 Hz
    Mean sound pressure level 88 dB (1W/1m)

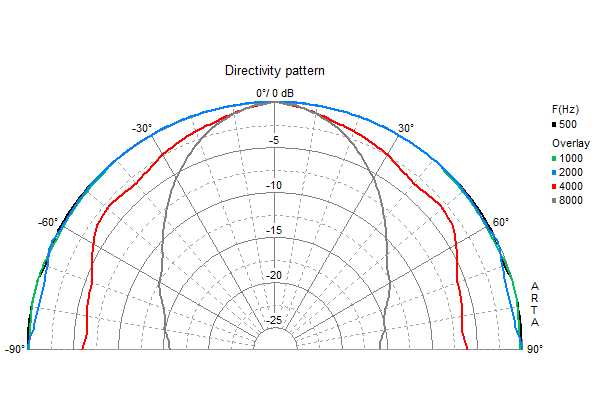

    Opening angle (-6 dB) 149°/4000 Hz
    Excursion limit ±1.5 mm
    Resonance frequency fs 250 Hz
    Magnetic induction 1.2 T
    Magnetic flux 160 uWb
    Height of front pole-plate 2 mm
    Voice coil diameter 14 mm
    Height of winding 3.5 mm

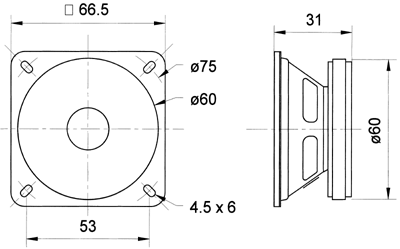

    Cutout diameter 61 mm
    Net weight 0.2 kg
    DC resistance Rdc 3.6 Ohm
    Mechanical Q factor Qms 3.21
    Electrical Q factor Qes 1.96
    Total Q factor Qts 1.22
    Equivalent volume Vas 0.3 litres
    Effective piston area Sd 22 cm2
    Dynamically moved mass Mms 0.8 grams
    Force factor Bxl 1.7 Tm
    Inductance of the voice coil L 0.3 mH
    Temperature range -40 ... 100 °C
    Connections 2.8 x 0.5 mm (+)
    2.8 x 0.5 mm (-)
    Protective system IP 64 *)

    *) IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker and a front cover (grille) might be necessary)
