WS 25 E - 8 Ohm

Thumbnail Filmstrip of WS 25 E - 8 Ohm Images

    Purchase WS 25 E - 8 Ohm

    SKU: V-1061-WS25E WS 25 E - 8 Ohm

    $82.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WS 25 E - 8 Ohm Woofer
    Art. No. 1061

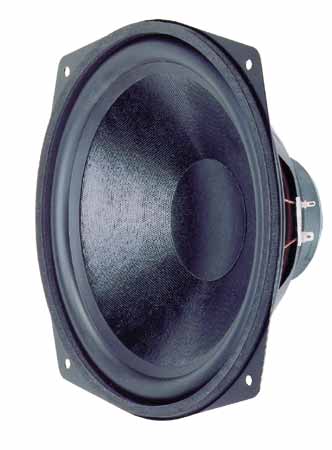

    Visaton WS 25 E - 8 Ohm Woofer.
    Visaton WS25E - 8 Ohm Woofer.



    Characteristics and Sound Properties
    25 cm (10") woofer with coated paper cone, rubber edge and extended rear pole plate for long strokes. Due to the basket design especially suited as replacement woofer for many standard HiFi speakers.



    Technical Specifications

    Rated power 80 W
    Maximum power 110 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-6000 Hz
    Mean sound pressure level 88 dB (1W/1m)
    Excursion limit ± 6 mm
    Resonance frequency fs 34 Hz
    Magnetic induction 1.0 T
    Magnetic flux 310 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Height of winding 15 mm
    Cutout diameter 225 mm
    Net weight 1.25 kg
    DC resistance Rdc 5.9 Ohm
    Mechanical Q factor Qms 2.82
    Electrical Q factor Qes 2.92
    Total Q factor Qts 1.43
    Equivalent volume Vas 113 litres
    Effective piston area Sd 346 cm2
    Dynamically moved mass Mms 33 grams
    Force factor Bxl 3.8 Tm
    Inductance of the voice coil L 0.8 mH
    Connections 5.2 x 0.8 mm (+)
    2.8 x 0.8 mm (−)





    Driver Dimensions

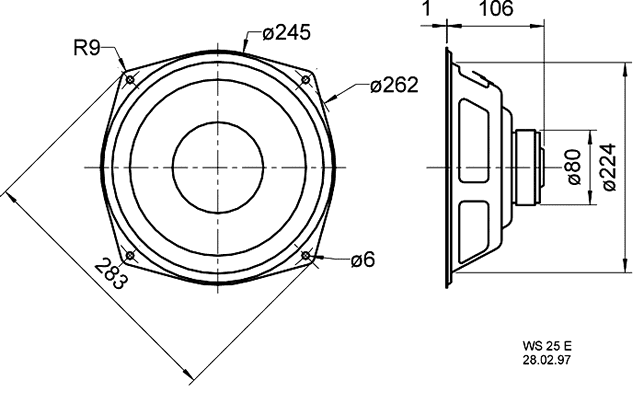

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

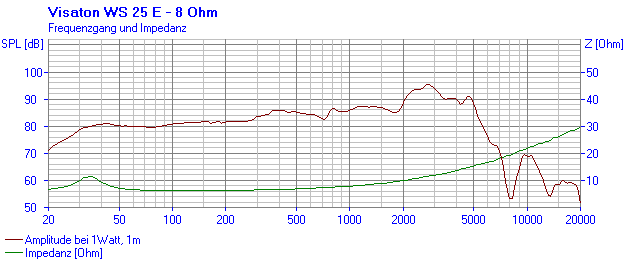

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
