WS 17 E - 8 Ohm

Thumbnail Filmstrip of WS 17 E - 8 Ohm Images

    Purchase WS 17 E - 8 Ohm

    SKU: V-1055-WS17E WS 17 E - 8 Ohm

    $54.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WS 17 E - 8 Ohm HiFi Woofer
    Art. No. 1055

    Visaton WS17E - 8 Ohm Hifi Woofer.
    Visaton WS17E - 8 Ohm HiFi Woofer



    Characteristics and Sound Properties
    17 cm (6.5") HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap. Due to the balanced frequency response also suitable as low-midrange driver for 4-way speaker systems. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.



    Technical Specifications

    Rated power 60 W
    Maximum power 90 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-7000 Hz
    Mean sound pressure level 88 dB (1W/1m)
    Opening angle (-6 dB) 47°/4000 Hz
    Excursion limit ± 6.5 mm
    Resonance frequency fs 45 Hz
    Magnetic induction 0.8 T
    Magnetic flux 314 µWb
    Height of front pole-plate 5 mm
    Voice coil diameter 25 mm
    Height of winding 12 mm
    Cutout diameter 150 mm
    Net weight 0.97 kg
    DC resistance Rdc 5.8 Ohm
    Mechanical Q factor Qms 2.2
    Electrical Q factor Qes 1.28
    Total Q factor Qts 0.81
    Equivalent volume Vas 22 litres
    Effective piston area Sd 143 cm2
    Dynamically moved mass Mms 16 grams
    Force factor Bxl 3.9 Tm
    Inductance of the voice coil L 0.9 mH
    Connections 5.2 x 0.8 mm (+)
    2.8 x 0.8 mm (−)

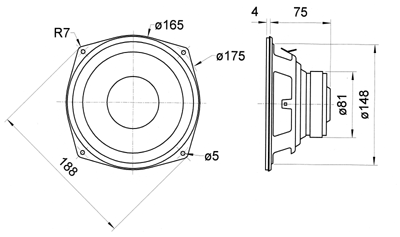

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

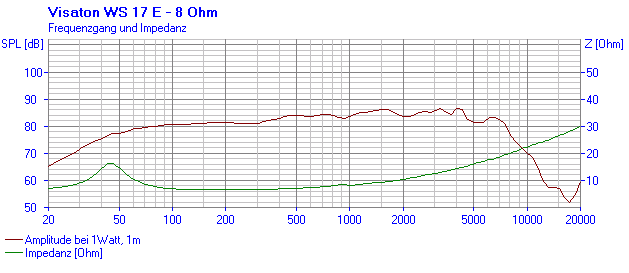

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

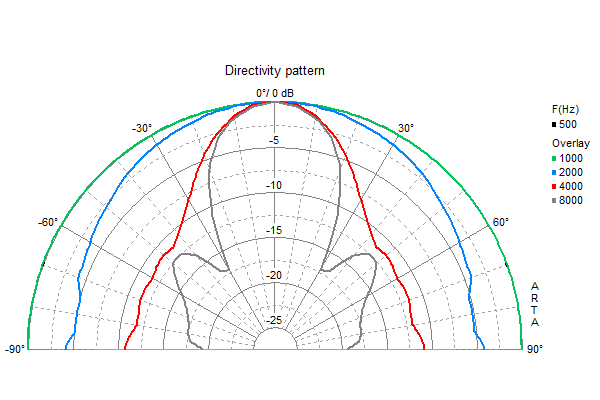

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
